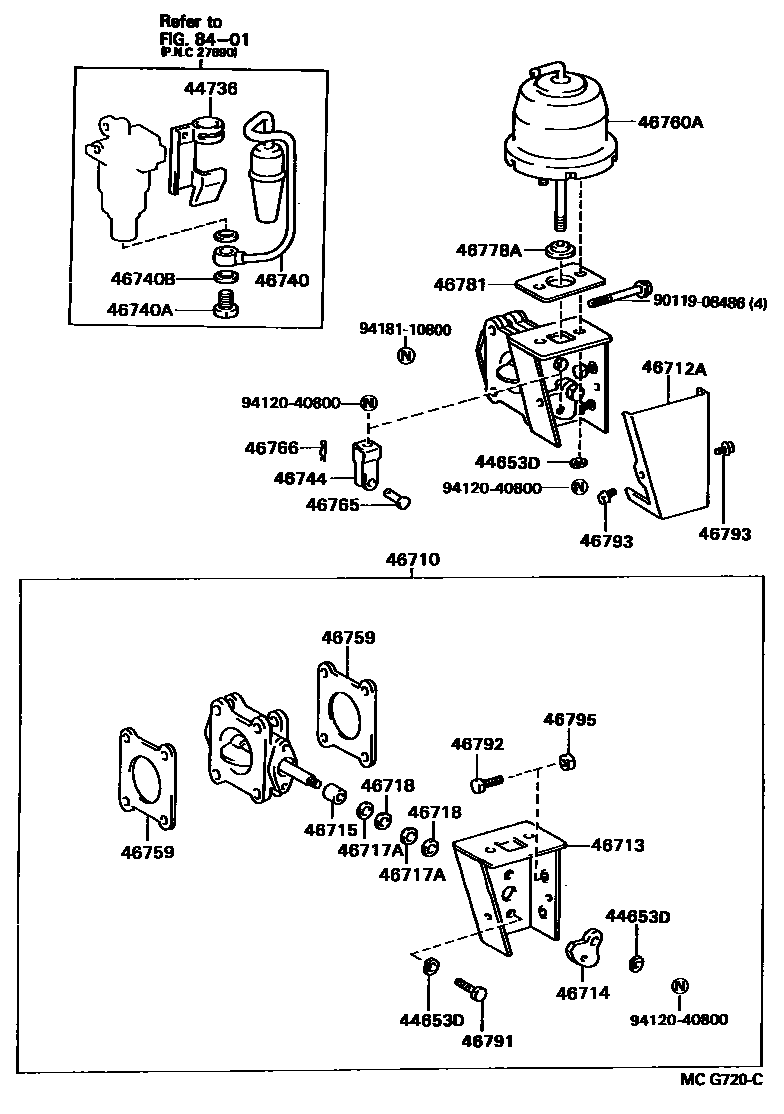

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

44653DWASHER, EXHAUST VALVE COVER

main44653-55010iBU7#,8#,9#198808-199408

44736BRACKET, AIR CLEANER

main44736-36011iBU76,8#,96198808-199109

sub44736-36070

main44736-36070iBU7#,8#,9#199109-199505

sub44736-37030

46710VALVE ASSY, EXHAUST BRAKE

main46710-36170iBU7#,8#,9#198808-199505

sub46710-36171

sub46712-36270

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBU7#,8#,9#198808-199505

46713BRACKET, EXHAUST VALVE

main46713-36060iBU7#,8#,9#198808-199505

46714LEVER, EXHAUST VALVE

main46714-36010iBU7#,8#,9#198808-199505

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBU7#,8#,9#198808-199505

L=16.0

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010iBU7#,8#,9#198808-199505

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010iBU7#,8#,9#198808-199505

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36011iBU76,8#,96198808-199112

sub46740-36080

sub44736-36070

main46740-36080iBU7#,8#,9#199112-199505

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU7#,8#,9#198808-199505

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247iBU7#,8#,9#198808-199505

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBU7#,8#,9#198808-199505

46759GASKET, EXHAUST RETARDER

main46759-36040iBU7#,8#,9#198808-199505

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36092iBU76,8#,96198808-198910

sub46760-36093

main46760-36093iBU7#,8#,9#198910-199505

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBU7#,8#,9#198808-199505

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU7#,8#,9#198808-199505

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBU7#,8#,9#198808-199505

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBU7#,8#,9#198808-199505

sub46781-28010

46791BOLT, EXHAUST VALVE COVER

main46791-36010iBU7#,8#,9#198808-199408

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010iBU7#,8#,9#198808-199505

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010iBU7#,8#,9#198808-199505

46795NUT, EXHAUST VALVE BRACKET

main46795-36010iBU7#,8#,9#198808-199505

8401

9011908486

main90119-08486

9412040800

main94120-40800

9418110800

main94181-10800

27 parts on this diagram · 1 diagram in section
