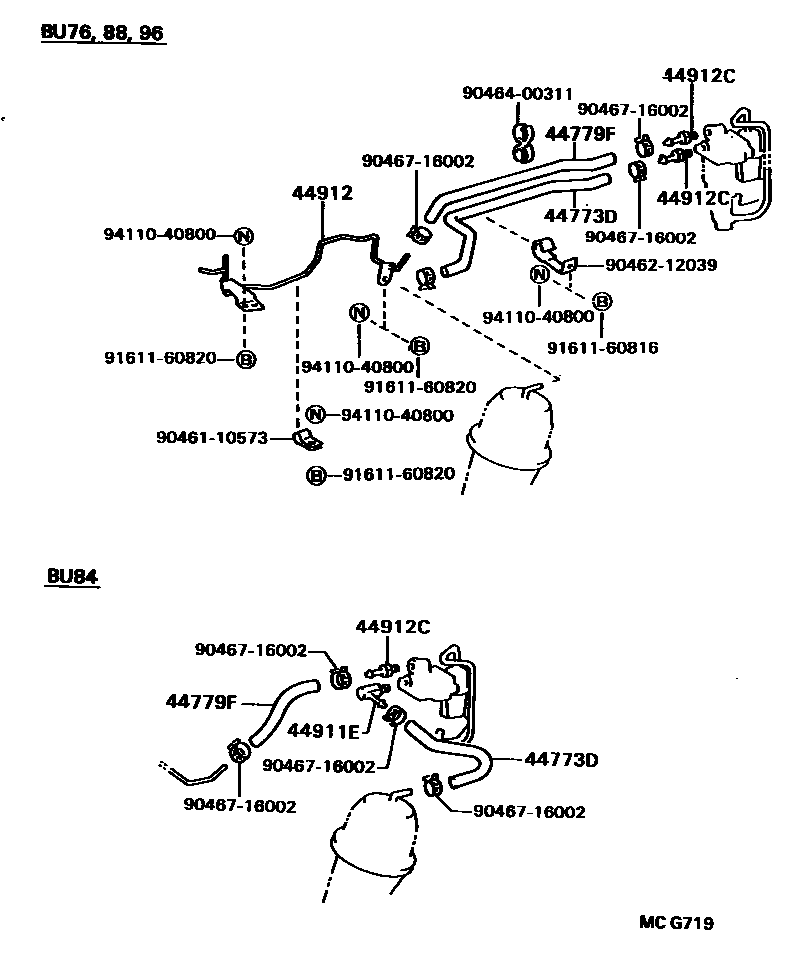

EXHAUST BRAKE TUBE & CLAMP

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36041iBU7#,88,9#198808-199505

main44773-36120iBU84,89198808-199505

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36010iBU7#,88,9#198808-199505

main95445-09180iBU84,89198808-199304

sub95446-09180

main95446-09180iBU89199304-199505

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU84,89198808-199505

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36160iBU7#,88,9#198808-199505

main44912-36190iBU84,89198808-199505

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU84,89198808-199505

9046110573

main90461-10573

9046212039

main90462-12039

9046400311

main90464-00311

9046716002

main90467-16002

9161160816

main91611-60816

9161160820

main91611-60820

9411040800

main94110-40800

12 parts on this diagram · 1 diagram in section
