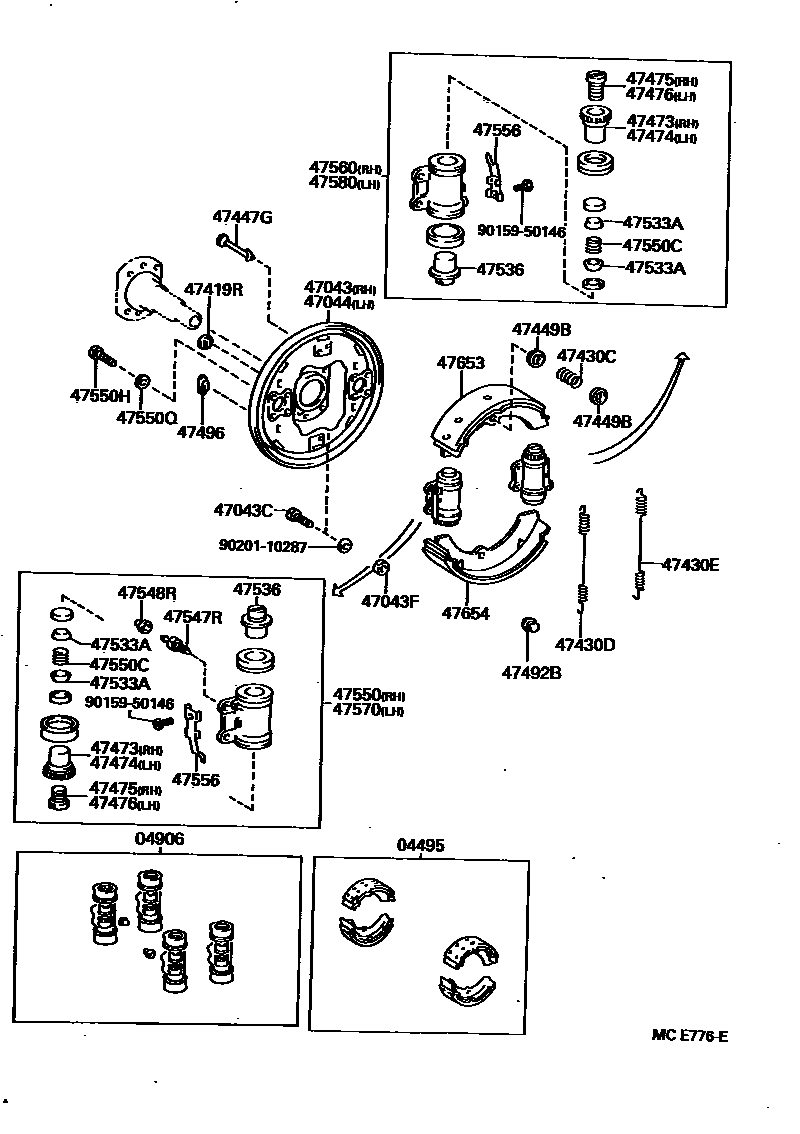

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1CYLINDER CUP:PLATE TYPE 0002 1CYLINDER CUP:PLATE TYPE 0003 1CYLINDER CUP:RING TYPE 0004 1

04495SHOE KIT, REAR BRAKE

main04494-36070iBU96198808-199111

sub04494-36170

main04494-36170iBU96199111-199310

main04495-36070iBU76,8#198808-199109

sub04495-36110

main04495-36080iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

sub04495-36110

main04495-36110iBU7#,8#,92199109-199505

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36060iBU96198808-199310

main04906-36070iBU76,8#198808-199210

main04906-36120iBU76,8#198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04906-36120iBU79,89,92199210-199303

main04906-36180iBU79,89,92199303-199505

sub04906-36181

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36080iBU96198808-199310

main47043-36110iBU76,8#198808-199210

sub47043-36140

sub47492-28010

main47043-36140iBU79,89,92199210-199505

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019iBU7#,8#,92198808-199505

*10-1.25PX31-21.5

sub90114-10063

main90114-14004iBU96198808-199310

*14-1.5PX39-26

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178iBU7#,8#,92198808-199505

sub94130-01002

main90170-14002iBU96198808-199310

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36040iBU96198808-199310

main47044-36110iBU76,8#198808-199210

sub47044-36140

sub47492-28010

main47044-36140iBU79,89,92199210-199505

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011iBU76,8#198808-199210

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iBU7#,8#,9#198808-199505

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90507-29006iBU7#,8#,9#198808-199505

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90507-29006iBU7#,8#,9#198808-199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iBU7#,8#,9#198808-199505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iBU7#,8#,9#198808-199505

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36023iBU96198808-199310

main47551-36130iBU76,8#198808-199210

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-36023iBU96198808-199310

main47552-36130iBU76,8#198808-199210

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36030iBU96198808-199310

main47553-36060iBU76,8#198808-199210

main47553-36070iBU76,8#198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47553-36070iBU79,89,92199210-199505

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36030iBU96198808-199310

main47554-36060iBU76,8#198808-199210

main47554-36070iBU76,8#198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47554-36070iBU79,89,92199210-199505

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iBU76,84,88,96198808-199505

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iBU76,84,88,96198808-199505

sub47491-36020

main47491-36010iBU76,8#198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

sub47491-36020

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-25010iBU96198808-199310

main47533-30011iBU7#,8#,92198808-199303

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-36032iBU96198808-199310

main47536-36040iBU7#,8#,92198808-199303

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iBU7#,8#,9#198808-199505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBU7#,8#,9#198808-199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36070iBU96198808-199310

main47550-36120iBU76,8#198808-199210

main47550-36140iBU76,8#199109-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47550-36140iBU79,89,92199210-199303

main47550-36150iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47550-36240iBU79,89,92199303-199505

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122iBU7#,8#,92198808-199303

main90501-10759iBU96198808-199310

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-10127iBU7#,8#,9#198808-199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-10287iBU7#,8#,9#198808-199505

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020iBU96198808-199310

main47555-36051iBU76,8#198808-199210

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36070iBU96198808-199310

main47560-36120iBU76,8#198808-199210

main47560-36140iBU76,8#199109-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47560-36140iBU79,89,92199210-199303

main47560-36150iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47560-36240iBU79,89,92199303-199505

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36070iBU96198808-199310

main47570-36120iBU76,8#198808-199210

main47570-36140iBU79,89,92199210-199303

main47570-36140iBU76,8#199109-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47570-36150iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47570-36240iBU79,89,92199303-199505

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36070iBU96198808-199310

main47580-36120iBU76,8#198808-199210

main47580-36140iBU76,8#199109-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47580-36140iBU79,89,92199210-199303

main47580-36150iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47580-36240iBU79,89,92199303-199505

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36090iBU96198808-199111

main47651-36120iBU76,8#198808-199109

main47655-36040iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-36090iBU96198808-199111

main47651-36120iBU76,8#198808-199109

main47655-36040iBU76,8#198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

9015950146

main90159-50146

9020110287

main90201-10287

34 parts on this diagram · 4 diagrams in section
