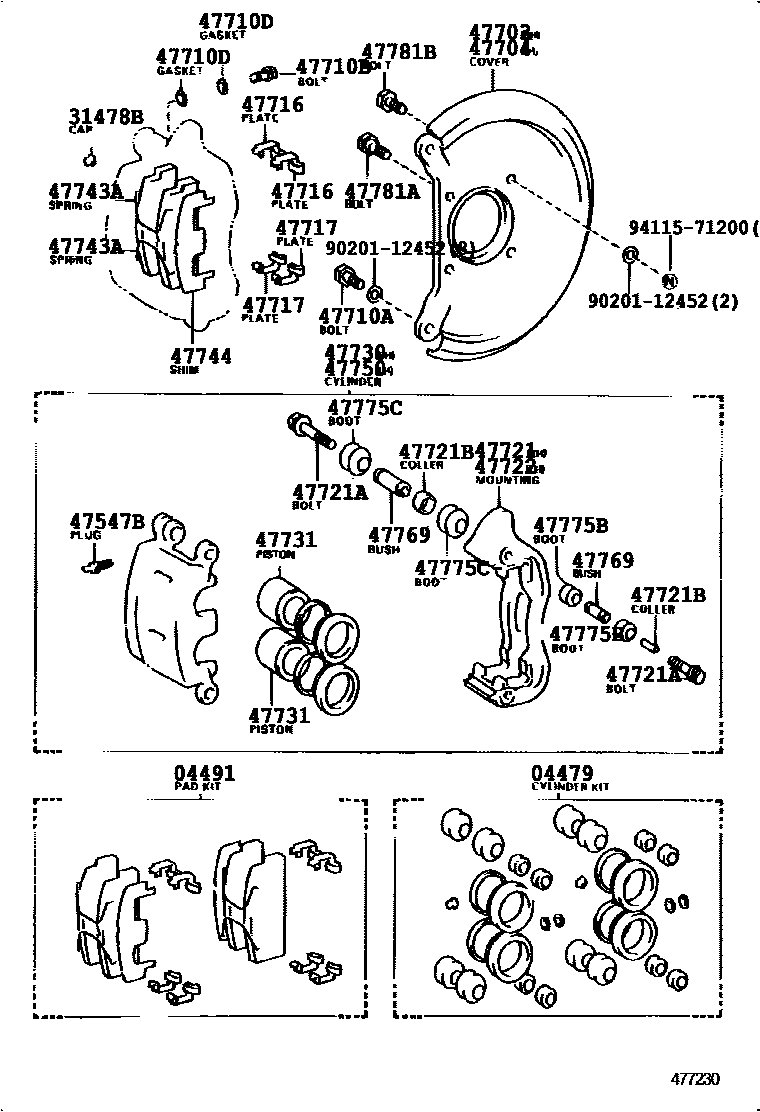

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-36010iBU7#,8#,92198808-199505

04491PAD KIT, DISC BRAKE, FRONT

main04491-36010iBU76,8#198808-199109

sub04465-36050

main04491-36030iBU7#,8#,92199109-199505

sub04465-36010

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBU7#,8#,92198808-199505

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iBU7#,8#,92198808-199505

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36020iBU7#,8#,92198808-199505

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36020iBU7#,8#,92198808-199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12070iBU7#,8#,92198808-199505

*12-1.25PX29-25

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10015iBU7#,8#,92198808-199505

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10035iBU7#,8#,92198808-199505

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36010iBU7#,8#,92198808-199505

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36010iBU7#,8#,92198808-199505

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36020iBU7#,8#,92198808-199305

sub47721-36021

main47721-36021iBU79,89,92199305-199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08297iBU7#,8#,92198808-199505

*8-1.25PX49-30

main90119-12030iBU7#,8#,92198808-199505

*12-1.25PX81-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-14005iBU7#,8#,92198808-199505

OUTER

main90387-20003iBU7#,8#,92198808-199505

INNER

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36020iBU7#,8#,92198808-199305

sub47722-36021

main47722-36021iBU79,89,92199305-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36022iBU7#,8#,92198808-199305

sub47730-36023

main47730-36023iBU79,89,92199305-199505

47731PISTON, FRONT DISC BRAKE

main47731-36010iBU7#,8#,92198808-199505

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36010iBU7#,8#,92198808-199505

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-36011iBU7#,8#,92198808-199505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36022iBU7#,8#,92198808-199305

sub47750-36023

main47750-36023iBU79,89,92199305-199505

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36010iBU7#,8#,92198808-199505

INNER

main47769-36020iBU7#,8#,92198808-199505

OUTER

47775BBOOT, BUSH DUST, NO.1

main47775-36030iBU7#,8#,92198808-199505

47775CBOOT, BUSH DUST, NO.2

main47775-36010iBU7#,8#,92198808-199505

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12080iBU7#,8#,92198808-199505

47781BBOLT(FOR DUST COVER SETTING)

main90101-12089iBU7#,8#,92198808-199505

*12-1.25PX40-20

9020112452

main90201-12452

9411571200

main94115-71200

27 parts on this diagram · 2 diagrams in section
