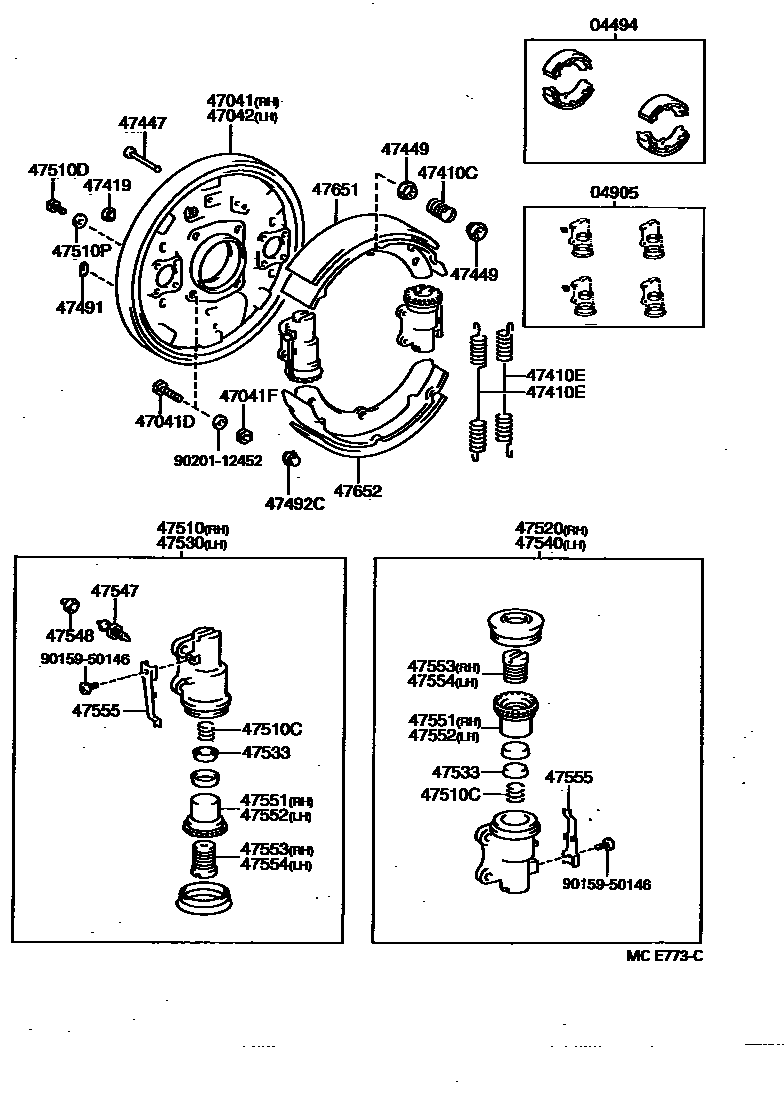

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1W(AUTO ADJUSTER),CYLINDER CUP0003 1W(AUTO ADJUSTER),CYLINDER CUP0004 1

04494SHOE KIT, FRONT BRAKE

main04494-36070iBU96198808-199111

sub04494-36170

main04494-36100iBU76,8#198808-199109

sub04494-36140

main04494-36141iBU7#,8#,92199109-199505

MARK NBK LN503

main04494-36170iBU96199111-199310

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36060iBU96198808-199310

main04905-36080iBU76,8#198808-199210

main04905-36100iBU79,89,92199210-199303

main04905-36150iBU79,89,92199303-199505

sub04905-36151

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36130iBU76,8#198808-199210

sub47041-36131

sub47492-28010

main47041-36131iBU79,89,92199210-199505

main47041-36140iBU96198808-199310

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113iBU7#,8#,92198808-199505

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002iBU96198808-199310

main94115-71200iBU7#,8#,92198808-199505

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36130iBU76,8#198808-199210

sub47042-36131

sub47492-28010

main47042-36131iBU79,89,92199210-199505

main47042-36140iBU96198808-199310

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBU7#,8#,9#198808-199505

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90507-29006iBU7#,8#,9#198808-199505

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iBU76,8#198808-199210

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36030iBU7#,8#,92198808-199505

main47447-60010iBU96198808-199310

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBU7#,8#,9#198808-199505

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBU76,84,88,96198808-199505

sub47491-36020

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47492-28010iBU76,84,88,96198808-199505

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36080iBU96198808-199310

main47510-36100iBU76,8#198808-199210

main47510-36120iBU79,89,92199210-199303

main47510-36121iBU79,89,92199303-199505

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iBU76,8#198808-199303

main90501-10759iBU96198808-199310

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-10127iBU7#,8#,9#198808-199505

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-10287iBU7#,8#,9#198808-199505

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36070iBU96198808-199310

main47520-36100iBU76,8#198808-199210

main47520-36120iBU79,89,92199210-199303

main47520-36121iBU79,89,92199303-199505

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36080iBU96198808-199310

main47530-36100iBU76,8#198808-199210

main47530-36120iBU79,89,92199210-199303

main47530-36121iBU79,89,92199303-199505

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011iBU7#,8#,92198808-199303

main47533-36031iBU96198808-199310

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36070iBU96198808-199310

main47540-36100iBU76,8#198808-199210

main47540-36120iBU79,89,92199210-199303

main47540-36121iBU79,89,92199303-199505

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBU7#,8#,9#198808-199505

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBU7#,8#,9#198808-199505

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36010iBU79,89,92199210-199505

main47551-36110iBU96198808-199310

main47551-36130iBU76,8#198808-199210

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-36010iBU79,89,92199210-199505

main47552-36110iBU96198808-199310

main47552-36130iBU76,8#198808-199210

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36030iBU96198808-199310

main47553-36060iBU76,8#198808-199210

main47553-36070iBU79,89,92199210-199505

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36030iBU96198808-199310

main47554-36060iBU76,8#198808-199210

main47554-36070iBU79,89,92199210-199505

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010iBU96198808-199310

main47555-36040iBU76,8#198808-199210

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36090iBU96198808-199111

main47651-36120iBU76,8#198808-199109

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-36090iBU96198808-199111

main47651-36120iBU76,8#198808-199109

9015950146

main90159-50146

9020112452

main90201-12452
