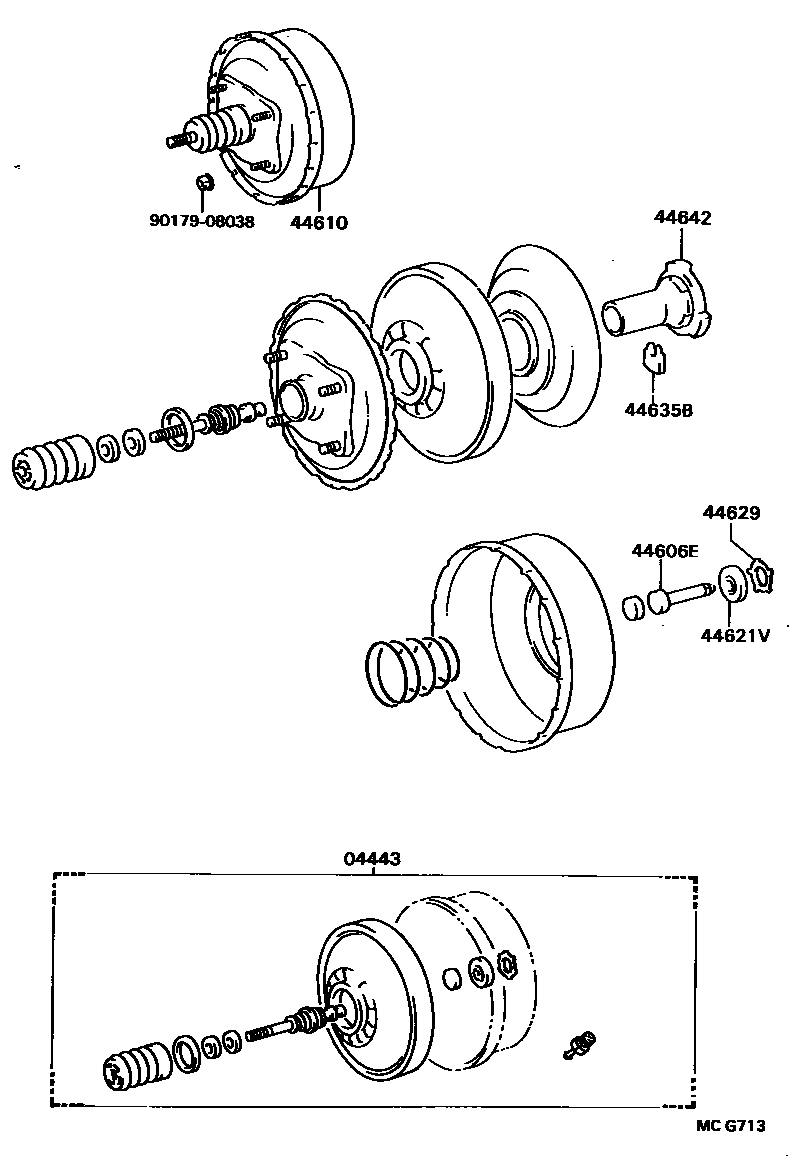

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-36050iBU7#,84¥7,200198808-199505

main04443-36060iBU7#,84¥7,200198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04443-36091iBU96¥12,700198808-199310

main04443-36091iBU88,89,92¥12,700198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04443-36101iBU88,89,92¥12,700198808-199505

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iBU7#,84¥1,970198808-199505

44610BOOSTER ASSY, BRAKE

main44610-36251iBU7#,84¥45,700198808-199505

main44610-36271iBU7#,84¥45,700198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36332iBU96¥51,000198808-199310

main44610-36332iBU88,89,92¥51,000198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36382iBU88,89,92¥51,000198808-199505

44621VSEAL, BOOSTER BODY

main44621-28120iBU7#,84¥590198808-199505

44629RING, CIRCULAR INTERNAL

main44628-28120iBU7#,84¥390198808-199505

44635BKEY, VALVE STOPPER

main44635-36240iBU7#,84¥200198808-199505

44642PISTON, BRAKE BOOSTER

main44642-36240iBU7#,84¥3,460198808-199505

main44642-36260iBU7#,84¥3,460198808-199505

W(FRONT DISC BRAKE)

9017908038

main90179-08038¥130

8 parts on this diagram · 4 diagrams in section
