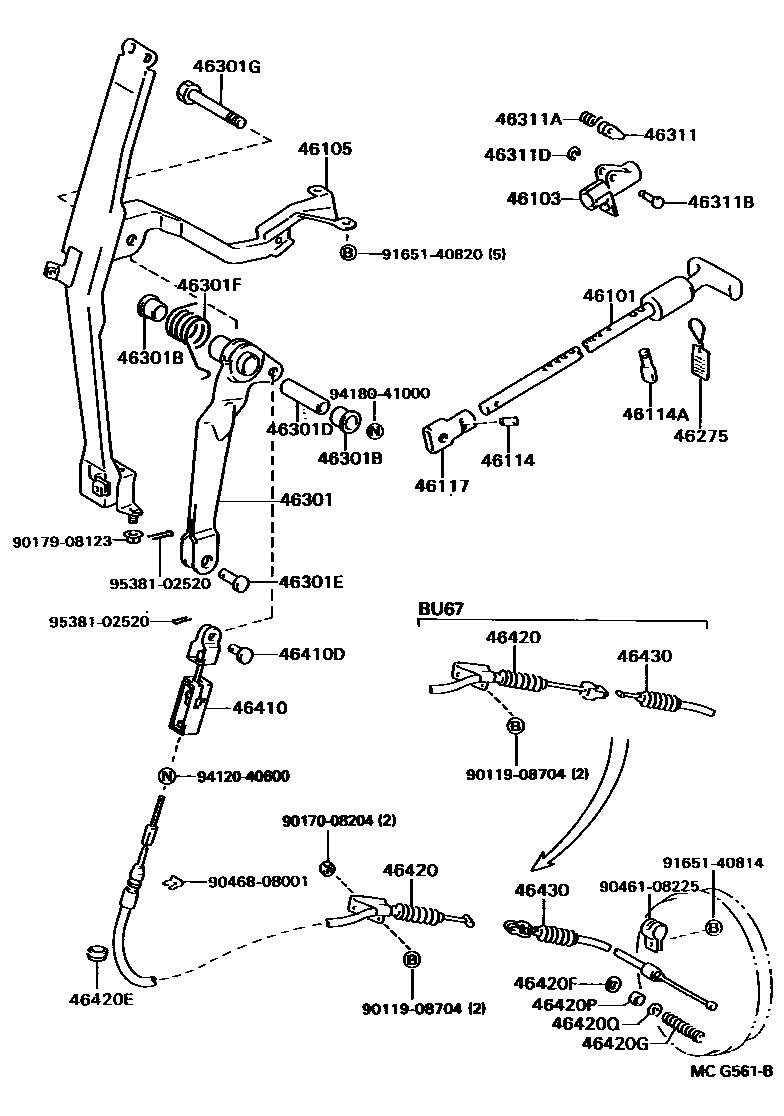

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36190-01iBU76,8#,96198808-199109

BLACK,TRIM4#

sub46101-36190

main46101-36191iBU7#,8#,9#199109-199505

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-36150iBU7#,8#,9#198808-199505

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-25020iBU84198808-199109

sub46105-25021

main46105-25021iBU84,89199109-199505

main46105-36040iBU76,88,96198808-199109

sub46105-36041

main46105-36041iBU7#,88,9#199109-199505

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iBU7#,8#,9#198808-199505

46114APIN, PARKING BRAKE PLUNGER

main46114-20010iBU7#,8#,9#198808-199505

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30020iBU7#,8#,9#198808-199505

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iBU76,8#,96198808-199109

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iBU7#,8#,9#198808-199505

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007iBU7#,8#,9#198808-199505

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iBU7#,8#,9#198808-199505

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iBU7#,8#,9#198808-199505

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iBU7#,8#,9#198808-199505

46301GBOLT(FOR INTERMEDIATE LEVER)

main91111-71070iBU7#,8#,9#198808-199505

46311PAWL, PARKING BRAKE

main46311-26010iBU7#,8#,9#198808-199505

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iBU7#,8#,9#198808-199505

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iBU7#,8#,9#198808-199505

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBU7#,8#,9#198808-199505

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36350iBU7#,8#,9#198808-199505

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iBU7#,8#,9#198808-199505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36301iBU7#,88,9#198808-199505

main46420-36350iBU84,89198808-199505

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-25026iBU7#,8#,9#198808-199505

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBU76,8#198808-199210

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iBU76,88198808-199109

main90501-14021iBU84198808-199210

46420PSPACER, PARKING BRAKE

main90560-08002iBU76,8#198808-199210

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU76,8#198808-199210

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-36091iBU76,88198808-199109

main46430-36160iBU7#,88,9#198808-199505

main46430-36230iBU84198808-199210

main46430-36300iBU89199210-199505

9011908704

main90119-08704

9017008204

main90170-08204

9017908123

main90179-08123

9046108225

main90461-08225

9046808001

main90468-08001

9165140814

main91651-40814

9165140820

main91651-40820

9412040600

main94120-40600

9418041000

main94180-41000

9538102520

main95381-02520

36 parts on this diagram · 6 diagrams in section
