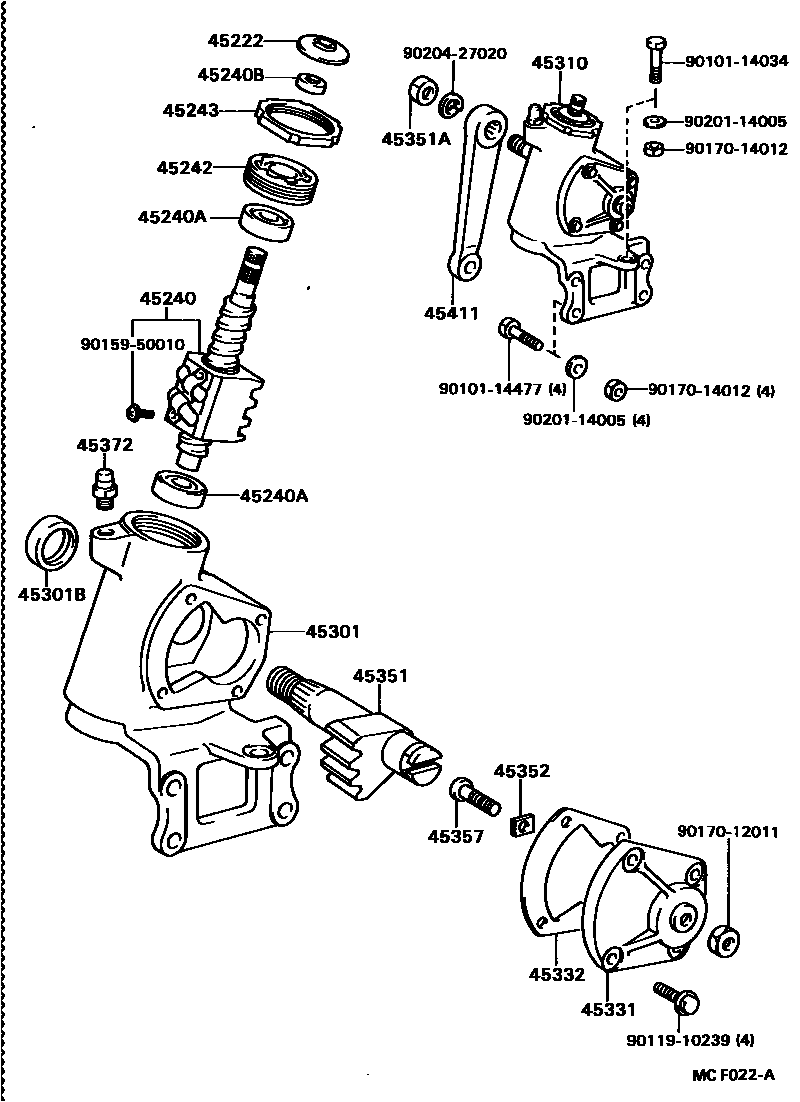

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1W/POWER STEERING 0004 1W/POWER STEERING 0005 1 0006 1

45222COVER, STEERING GEAR DUST

main45222-26010iBU7#,8#,9#198808-199505

45240WORM ASSY, STEERING

main45240-36150iBU84,89198808-199505

main45240-36180iBU7#,88,9#198808-199505

45240ABEARING(FOR STEERING WORM)

main90363-20024iBU7#,8#,9#198808-199505

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iBU7#,88,9#198808-199505

main90311-19001iBU84,89198808-199505

45242SCREW, WORM BEARING ADJUSTING

main45242-25010iBU7#,88,9#198808-199505

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iBU7#,88,9#198808-199505

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-36180iBU84,89198808-199505

main45301-36240iBU7#,88,9#198808-199505

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36104iBU84,89198808-199505

main90311-38033iBU7#,88,9#198808-199505

45310HOUSING ASSY, STEERING GEAR

main45310-36200iBU84,89198808-199212

sub45310-36201

main45310-36201iBU89199212-199505

main45310-36260iBU7#,88,9#198808-199212

sub45310-36261

main45310-36261iBU79,9#199212-199505

45331COVER, SECTOR SHAFT END

main45304-36050iBU84,89198808-199505

main45304-36060iBU7#,88,9#198808-199505

45332GASKET, SECTOR SHAFT END COVER

main45332-36040iBU7#,88,9#198808-199505

main45332-37010iBU84,89198808-199505

45351SHAFT, STEERING SECTOR

main45351-36030iBU84,89198808-199212

sub45351-36031

main45351-36031iBU89199212-199505

main45351-36050iBU7#,88,9#198808-199212

sub45351-36051

main45351-36051iBU79,9#199212-199505

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-27033iBU7#,8#,9#198808-199505

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iBU7#,8#,9#198808-199505

T=1.95

main45353-37010iBU7#,8#,9#198808-199505

T=2.00

main45354-37010iBU7#,8#,9#198808-199505

T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iBU7#,8#,9#198808-199505

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iBU7#,88,9#198808-199505

main90930-03095iBU84,89198808-199505

45411ARM, PITMAN

main45411-36480iBU7#,88,92198808-199212

W(POWER STEERING)

main45411-36481iBU79,92199212-199505

W(POWER STEERING)

main45411-36500iBU7#,88,9#198808-199212

main45411-36501iBU79,9#199212-199505

main45411-36520iBU84,89198808-199212

main45411-36521iBU89199212-199505

main45411-36550iBU84198808-199210

W(POWER STEERING)

9010114034

main90101-14034

9010114477

main90101-14477

9011910239

main90119-10239

9015950010

main90159-50010

9017012011

main90170-12011

9017014012

main90170-14012

9020114005

main90201-14005

9020427020

main90204-27020

25 parts on this diagram · 6 diagrams in section
