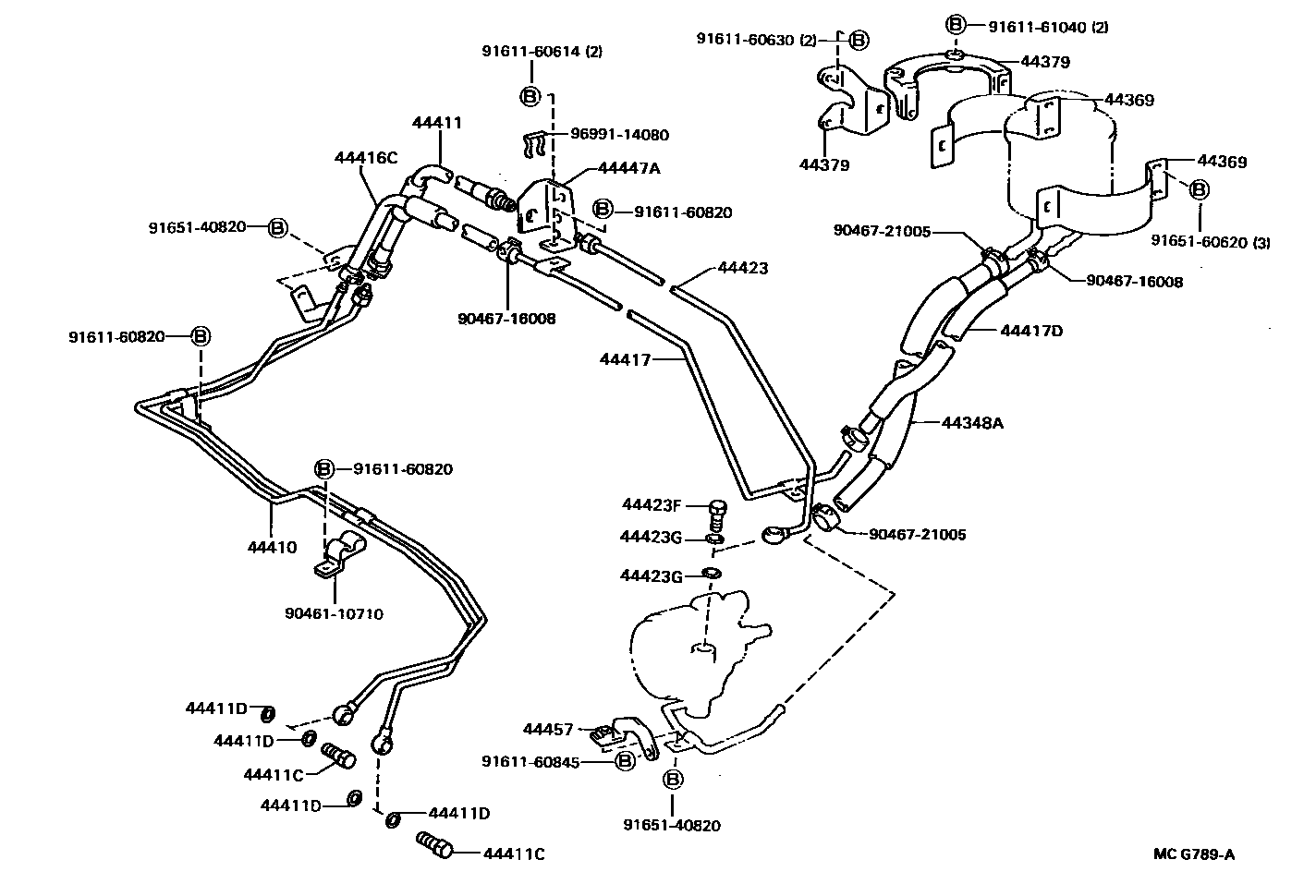

POWER STEERING TUBE

0001 1 0002 1 0003 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36170iBU76,8#198808-199505

sub44348-36171

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010iBU76,8#198808-199210

main44369-36020iBU79,92199210-199505

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36090iBU76,8#198808-199210

main44379-36150iBU79,92199210-199505

sub44379-37020

44410TUBE ASSY, PRESSURE FEED

main44410-36020iBU84198808-198904

sub44410-36021

44411HOSE, PRESSURE FEED

main44411-36141iBU7#,88,92198808-199310

sub44411-36142

main44411-36142iBU79,92199310-199505

sub44411-36143

main44411-36180iBU84198808-198904

sub44411-36181

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iBU76,8#198808-199505

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iBU76,8#198808-199505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36190iBU7#,88,92198808-199505

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18136iBU7#,88,92198808-199505

main90447-18038iBU84198808-198904

44417TUBE, RETURN, NO.2

main44417-36120iBU76,8#198808-198911

sub44417-36121

main44417-36121iBU7#,88,92198911-199505

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18132iBU76,8#198808-198910

main90447-18037iBU7#,88,92198910-199505

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36180iBU76,8#198808-199505

44423FBOLT, UNION

main90401-16004iBU76,8#198808-199310

sub90401-16027

main90401-16027iBU79,92199310-199505

44423GGASKET, UNION BOLT

main90430-16168iBU76,8#198808-199505

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36160iBU76,8#198808-198911

sub44447-36161

main44447-36161iBU7#,88,92198911-199505

44457BRACKET, TUBE SUPPORT, NO.1

main44457-36040

9046110710

main90461-10710

9046716008

main90467-16008

9046721005

main90467-21005

9161160614

main91611-60614

9161160630

main91611-60630

9161160820

main91611-60820

9161160845

main91611-60845

9161161040

main91611-61040

9165140820

main91651-40820

9165160620

main91651-60620

9699114080

main96991-14080

27 parts on this diagram · 3 diagrams in section
