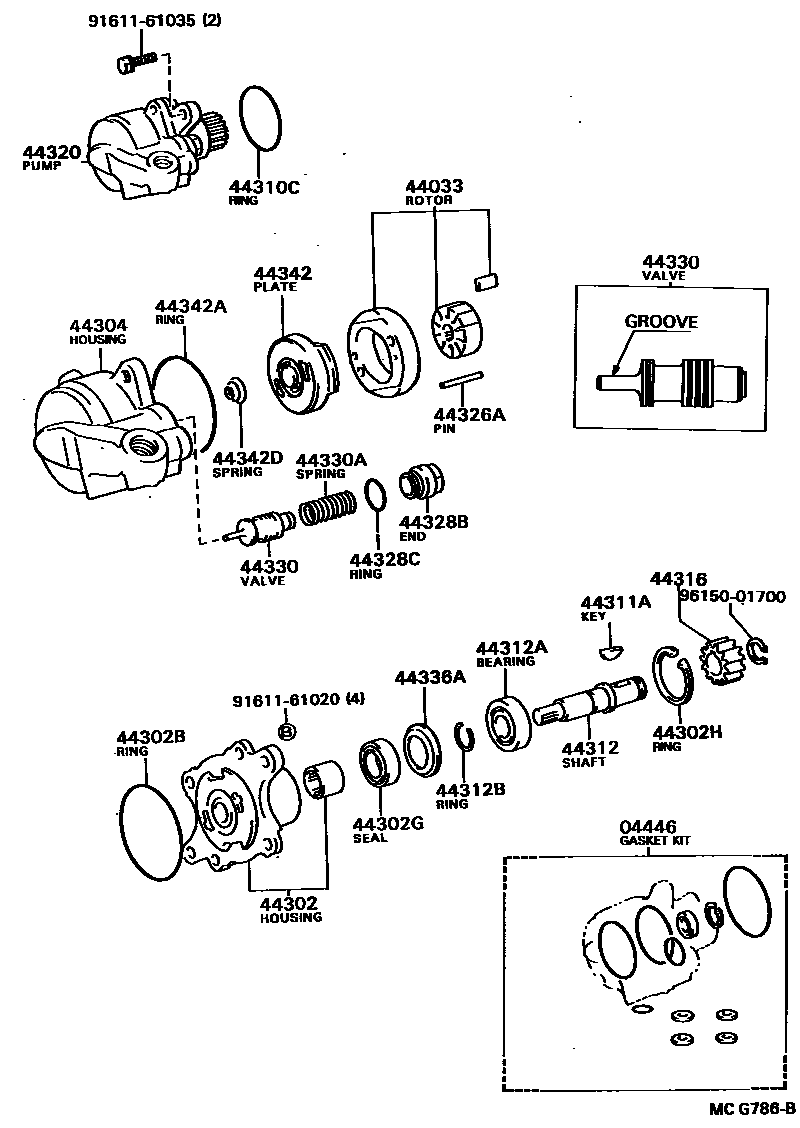

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36050iBU76,88198808-199106

sub04446-36080

main04446-36080iBU76,88199106-199202

sub04446-36081

main04446-36081iBU7#,88,92199202-199505

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iBU76,8#198808-199502

sub44033-36060

main44033-36060iBU79,92199502-199505

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36160iBU76,8#198808-199502

sub44302-36210

main44302-36210iBU79,92199502-199505

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBU76,8#198808-199505

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iBU76,8#198808-199104

main90029-21018iBU7#,88,92199104-199505

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBU7#,88,92198808-199505

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36160iBU76,8#198808-199505

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU76,8#198808-199505

44311AKEY, VANE PUMP PULLEY

main90029-18001iBU76,8#198808-199505

44312SHAFT, VANE PUMP

main44312-36110iBU76,8#198808-199505

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU76,8#198808-199505

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU76,8#198808-199505

44316GEAR, VANE PUMP

main44316-36020iBU76,8#198808-199505

44320PUMP ASSY, VANE

main44310-36180iBU7#,88,92198808-199505

main44310-36200iBU84198808-198904

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBU76,8#198808-199505

L=29.1

44328BEND, VANE PUMP HOUSING

main44328-89101iBU76,8#198808-199505

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iBU76,8#198808-199505

44330VALVE ASSY, FLOW CONTROL

main44330-36021iBU84198808-198904

TWO GROOVE

main44330-36030iBU84198808-198904

ONE GROOVE

main44330-36040iBU84198808-198904

NO GROOVE

main44330-36050iBU7#,88,92198808-199505

TWO GROOVE

main44330-36060iBU7#,88,92198808-199505

ONE GROOVE

main44330-36070iBU7#,88,92198808-199505

NO GROOVE

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBU76,8#198808-199505

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iBU76,8#198808-199502

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iBU7#,88,92198808-199505

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBU76,8#198808-199505

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iBU76,8#198808-199505

9161161020

main91611-61020

9161161035

main91611-61035

9615001700

main96150-01700

26 parts on this diagram · 2 diagrams in section
