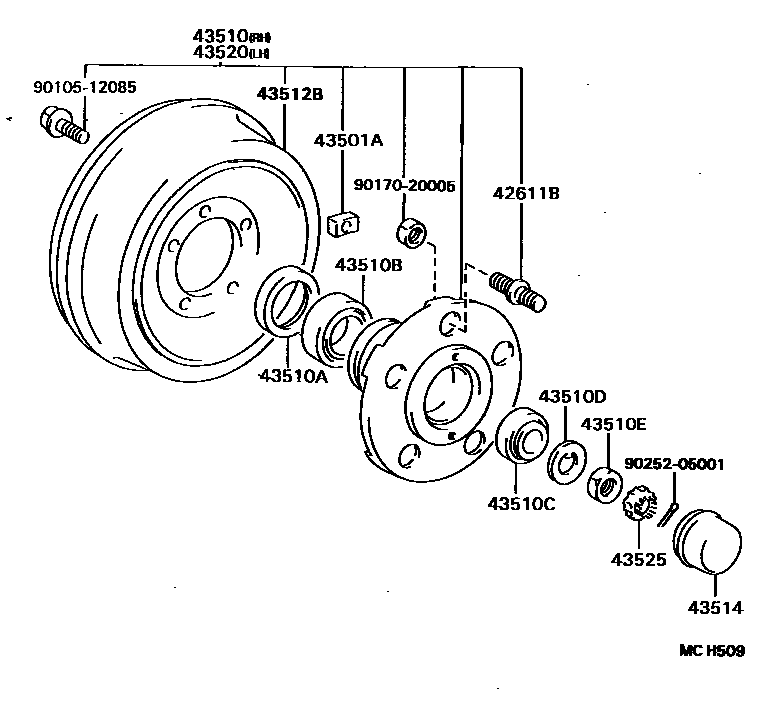

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02045iBU96198808-199505

RH

main90942-02046iBU96198808-199505

LH

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iBU96198808-199310

10G

main90937-01118iBU96198808-199310

20G

main90937-01119iBU96198808-199310

30G

main90937-01120iBU96198808-199310

40G

main90937-01121iBU96198808-199310

50G

main90937-01122iBU7#,8#,9#198808-199505

60G

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36131iBU7#,8#,92198808-199505

main43510-36140iBU96198808-199008

main43510-36170iBU96199008-199310

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001iBU96198808-199310

main90311-68001iBU7#,8#,92198808-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU7#,8#,92198808-199505

main90368-50001iBU96198808-199310

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU7#,8#,92198808-199505

main90368-35001iBU96198808-199310

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU7#,8#,92198808-199505

main90214-33001iBU96198808-199310

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU7#,8#,92198808-199505

main90171-33001iBU96198808-199310

43512DISC, FRONT

main43512-36070iBU7#,8#,92198808-199505

43512BDRUM, BRAKE

main43512-36101iBU7#,8#,92198808-199505

main43512-36110iBU96198808-199008

main43512-36120iBU96199008-199310

43514CAP, FRONT HUB GREASE

main43514-36030iBU7#,8#,92198808-199505

main43514-37020iBU96198808-199310

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36131iBU7#,8#,92198808-199505

main43520-36140iBU96198808-199008

main43520-36170iBU96199008-199310

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU7#,8#,92198808-199505

9010512085

main90105-12085

9017020005

main90170-20005

9025205001

main90252-05001

16 parts on this diagram · 3 diagrams in section
