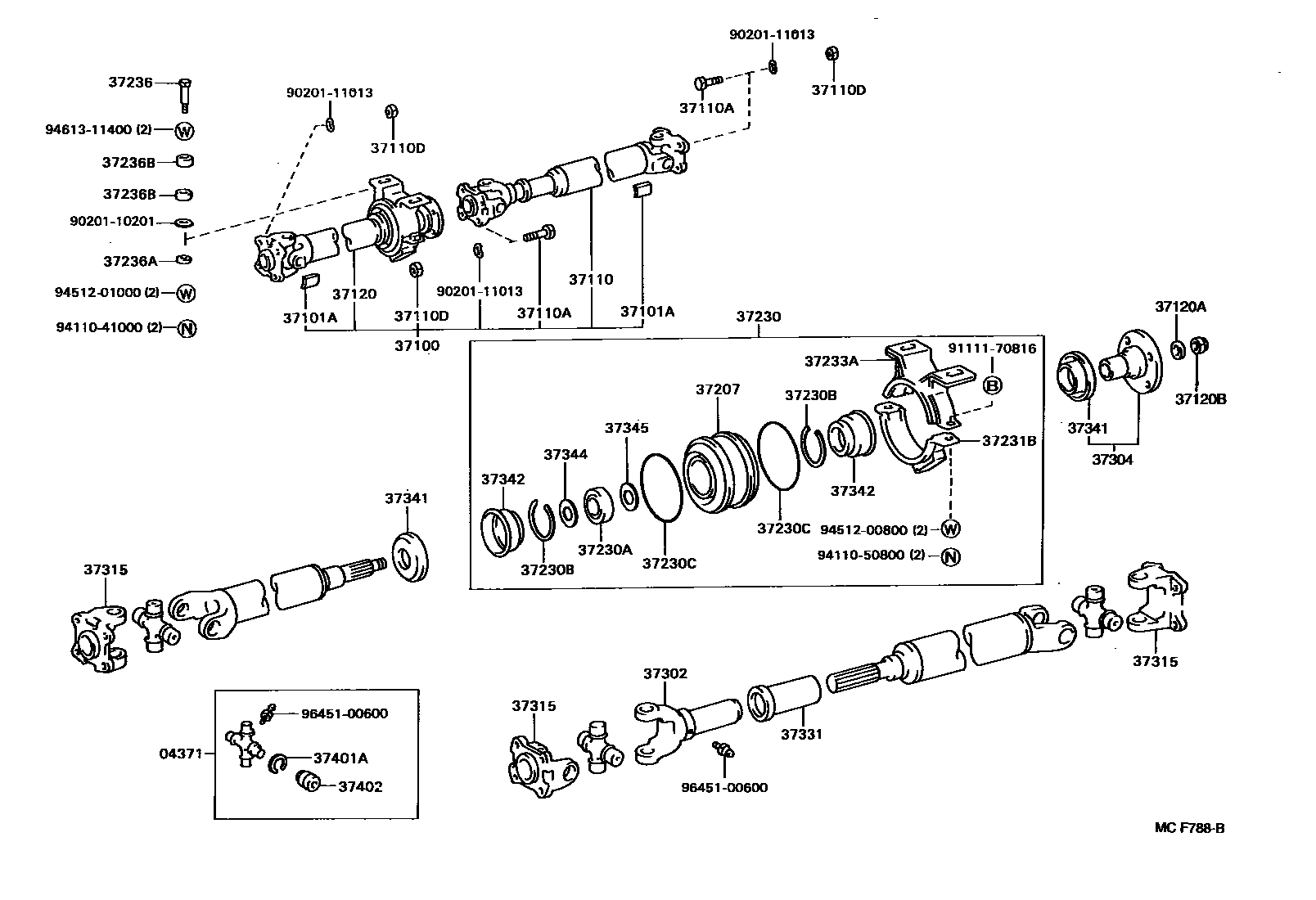

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
sub04371-60210
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
*11-1.00PX28-16
37110DNUT (FOR PROPELLER SHAFT)
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
OD=33.5,T=4.0
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37230ABEARING, NO.1 (FOR CENTER SUPPORT)
37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
37231BHOUSING, CENTER SUPPORT BEARING, NO.1
sub37231-36021
37233AHOUSING, CENTER SUPPORT BEARING, NO.2
37236BOLT, CENTER SUPPORT BEARING HOUSING
37236AWASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING)
37236BCUSHION (FOR CENTER SUPPORT BEARING HOUSING)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37315YOKE, UNIVERSAL JOINT FLANGE
sub37315-60090
37331COVER, SLIDING SHAFT DUST
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.00,NO MARK
T=2.03,BROWN
T=2.06,BLUE
T=2.09,NO MARK
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
WHITE PAINTED
9020110201
main90201-10201
9020111013
main90201-11013
9111170816
main91111-70816
9411041000
main94110-41000
9411050800
main94110-50800
9451200800
main94512-00800
9451201000
main94512-01000
9461311400
main94613-11400
9645100600
main96451-00600
38 parts on this diagram · 2 diagrams in section
