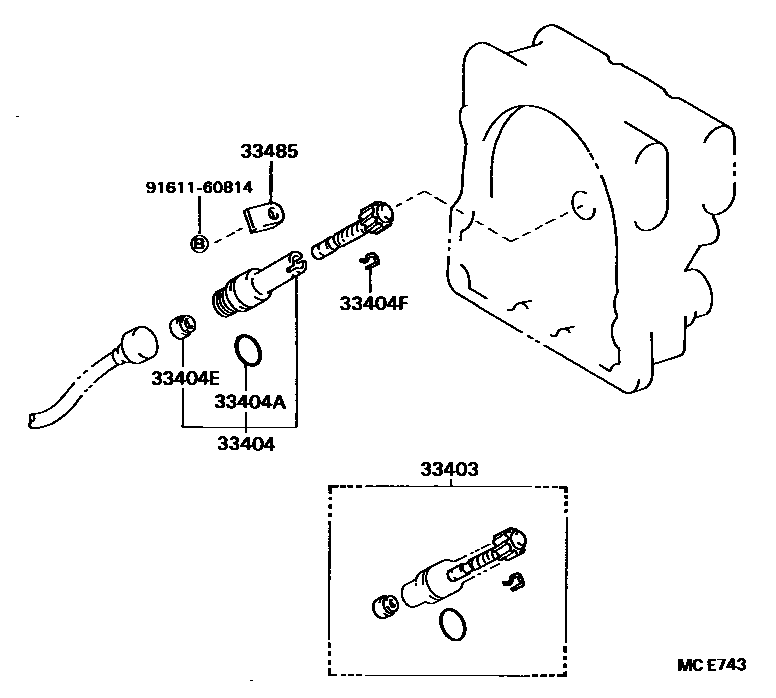

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39235iBU7#198808-199505

N=23,MARK 23:6

main33482-39245iBU88,89,92198808-199505

N=24,MARK 24:6

main33482-39255iBU76198808-199505

N=25,MARK 25:6

main33482-39265iBU84198808-199505

N=22,MARK 22:5

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iBU7#,8#,9#198808-199505

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBU7#,8#,9#198808-199505

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBU7#,8#,9#198808-199505

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU7#,8#,9#198808-199505

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBU7#,8#,9#198808-199505

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
