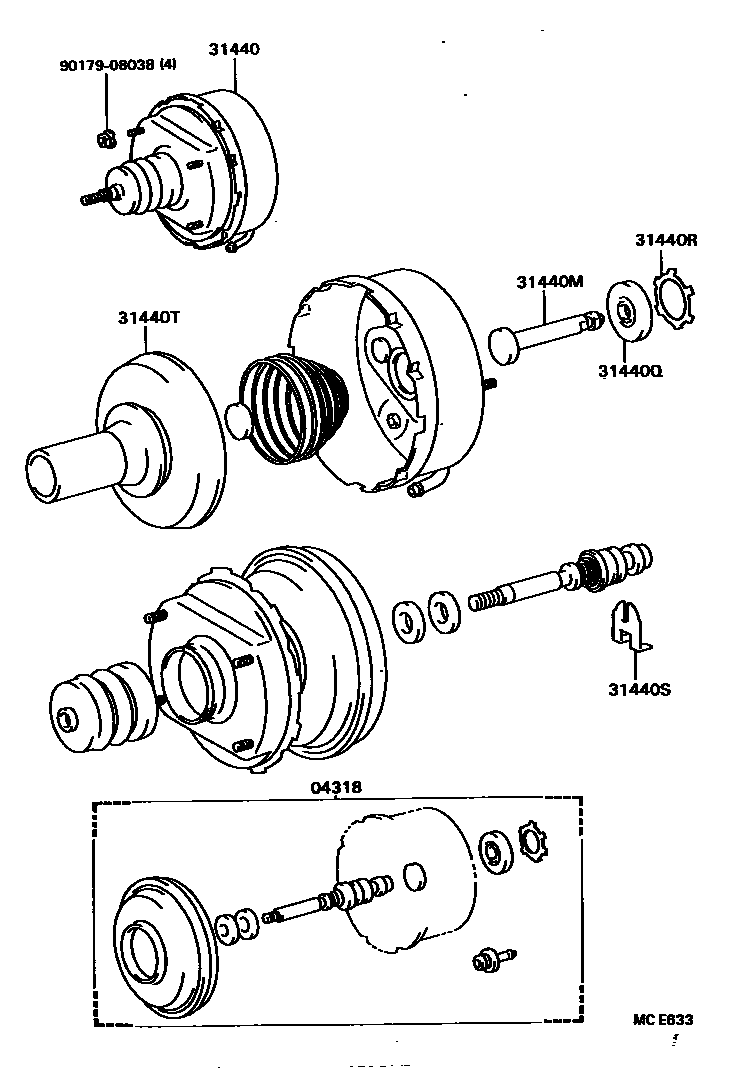

CLUTCH BOOSTER

0001 1 0002 1

04318BOOSTER KIT, CLUTCH

main04318-36010iBU76,88,96198808-199505

main04318-36010iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-36011iBU76,88,96198808-199505

main31440-36011iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520iBU76,88,96198808-199505

main44606-12520iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440QGASKET, BRAKE BOOSTER BRACKET

main44621-28120iBU76,88,96198808-199505

main44621-28120iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120iBU76,88,96198808-199505

main44628-28120iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-12480iBU76,88,96198808-199505

main44635-12480iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-87502iBU76,88,96198808-199505

main44642-87502iBU88199109-199210

TAIWAN SPEC OR W(CLUTCH BOOSTER)

9017908038

main90179-08038

8 parts on this diagram · 2 diagrams in section
