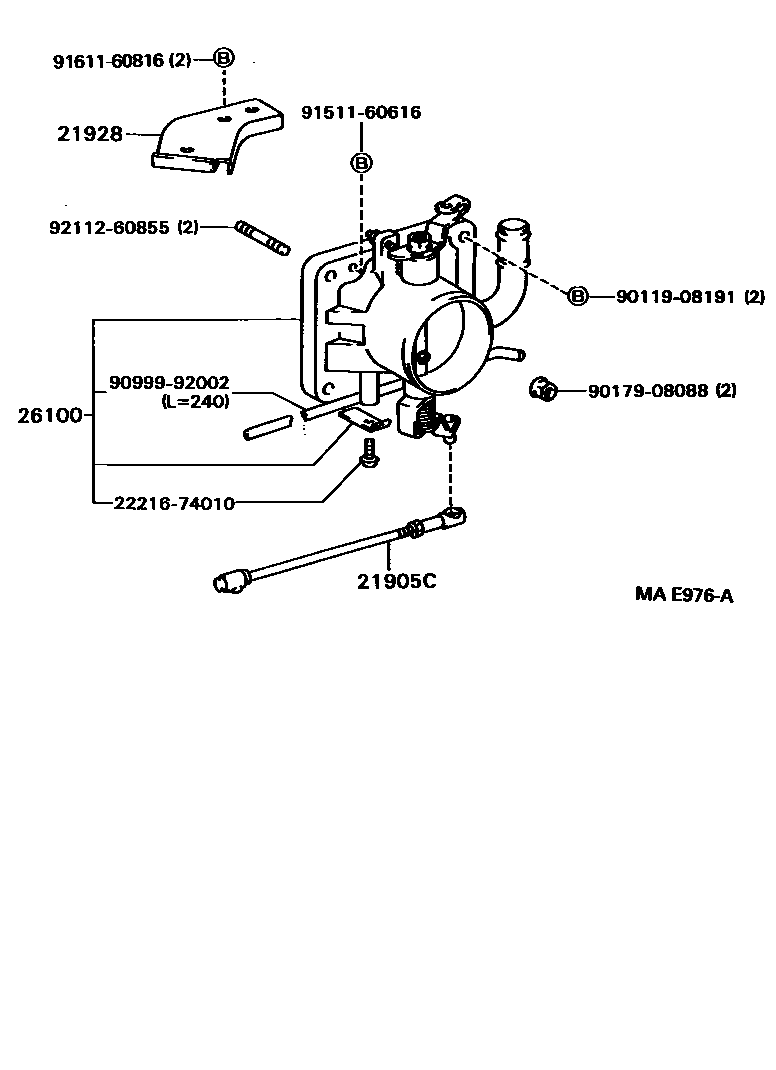

VENTURI

0001 1 0002 1

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-57020i3B..BU79,89,92199210-199505

main21905-58010i11B,14B..BU76,84,88,96198808-199307

L=110

sub21905-58070

main21905-58020i11B,14B..BU76,84,88,96198808-199307

L=112.5

sub21905-58070

main21905-58030i11B,14B..BU76,84,88,96198808-199307

L=115

main21905-58040i11B,14B..BU76,84,88,96198808-199307

L=117.5

main21905-58040i14B..BU96199309-199310

main21905-58050i11B,14B..BU76,84,88,96198808-199307

L=120

sub21905-58070

main21905-58070i14B..BU96199307-199309

21928SUPPORT, THROTTLE WIRE

main21928-58040i11B,14B..BU76,8#,96198808-198901

sub21928-58041

main21928-58041i11B,14B..BU76,8#,96198901-198910

main21928-58070i11B,14B..BU76,84,88,96198910-199505

26100VENTURI ASSY

main26100-58070i3B..BU79,89,92199210-199505

main26100-58100i11B,14B..BU76,8#,96198808-199008

sub26100-58101

main26100-58101i11B,14B..BU76,84,88,96199008-199505

sub26100-58102

sub19829-17010

2221674010SCREW, DASH POT ADJUSTING

main22216-74010

9011908191

main90119-08191

9017908088

main90179-08088

9099992002

main90999-92002

9151160616

main91511-60616

9161160816

main91611-60816

9211260855

main92112-60855

10 parts on this diagram · 2 diagrams in section
