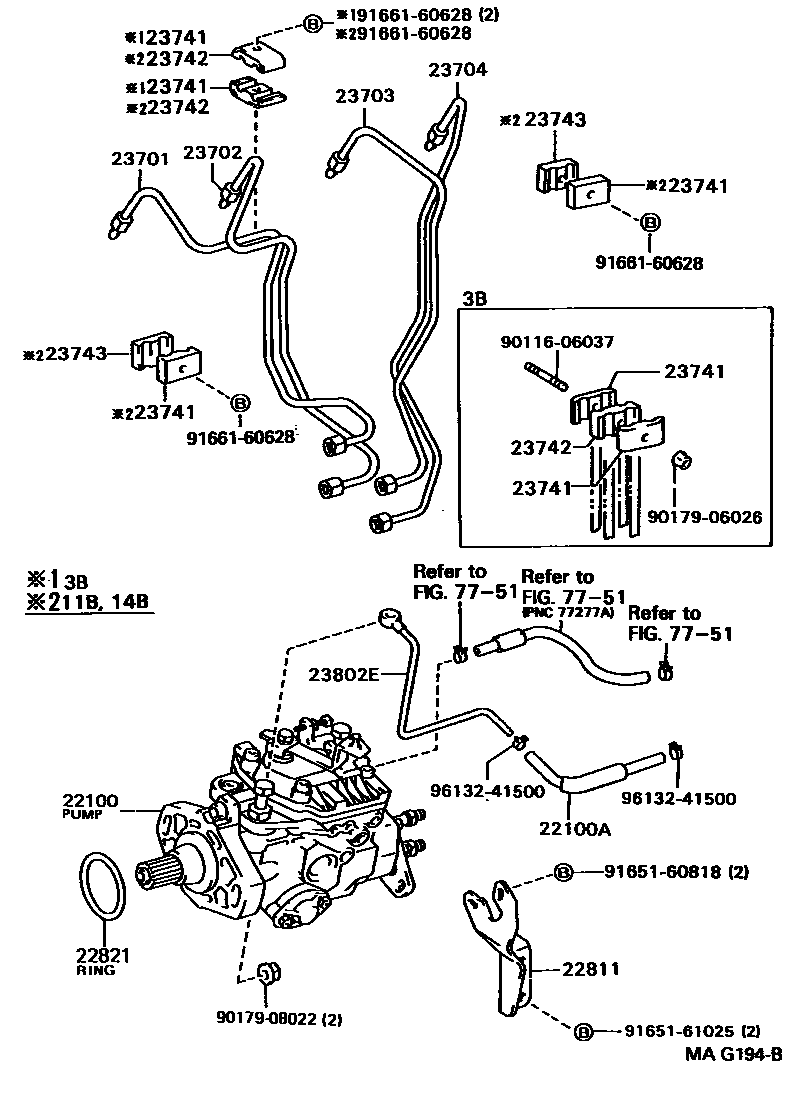

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56330i11B..BU84198808-199210

sub22100-56400

main22100-56340i11B..BU76198808-199210

main22100-58520i14B..BU88198808-199210

main22100-58530i14B..BU96198808-199310

main22100-58750i3B..BU89199210-199505

main22100-58840i3B..BU79,92199210-199505

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-56060i11B,14B,3B..BU7#,8#,9#198808-199505

*H,L=171

22811STAY, INJECTION PUMP, NO.1

main22811-56050i11B,14B,3B..BU7#,8#,9#198808-199505

22821GASKET, INJECTION PUMP

main90301-49003i11B,14B,3B..BU7#,8#,9#198808-199505

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56080i11B,14B..BU76,84,88,96198808-199505

main23701-58010i3B..BU79,89,92199210-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56080i11B,14B..BU76,84,88,96198808-199505

main23702-58010i3B..BU79,89,92199210-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56080i11B,14B..BU76,84,88,96198808-199505

main23703-58010i3B..BU79,89,92199210-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56080i11B,14B..BU76,84,88,96198808-199505

main23704-58010i3B..BU79,89,92199210-199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i11B,14B..BU76,84,88,96198808-199505

main23741-56010i3B..BU79,89,92199210-199505

23742CLAMP, INJECTION PIPE, NO.2

main23741-56010i11B,14B..BU76,84,88,96198808-199505

main23741-56020i3B..BU79,89,92199210-199505

sub23741-56021

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i11B,14B..BU76,84,88,96198808-199505

23802EPIPE SUB-ASSY, FUEL

main23801-56090i11B,14B,3B..BU7#,8#,9#198808-199505

7751

9011606037

main90116-06037

9017906026

main90179-06026

9017908022

main90179-08022

9165160818

main91651-60818

9165161025

main91651-61025

9166160628

main91661-60628

9613241500

main96132-41500

20 parts on this diagram · 1 diagram in section
