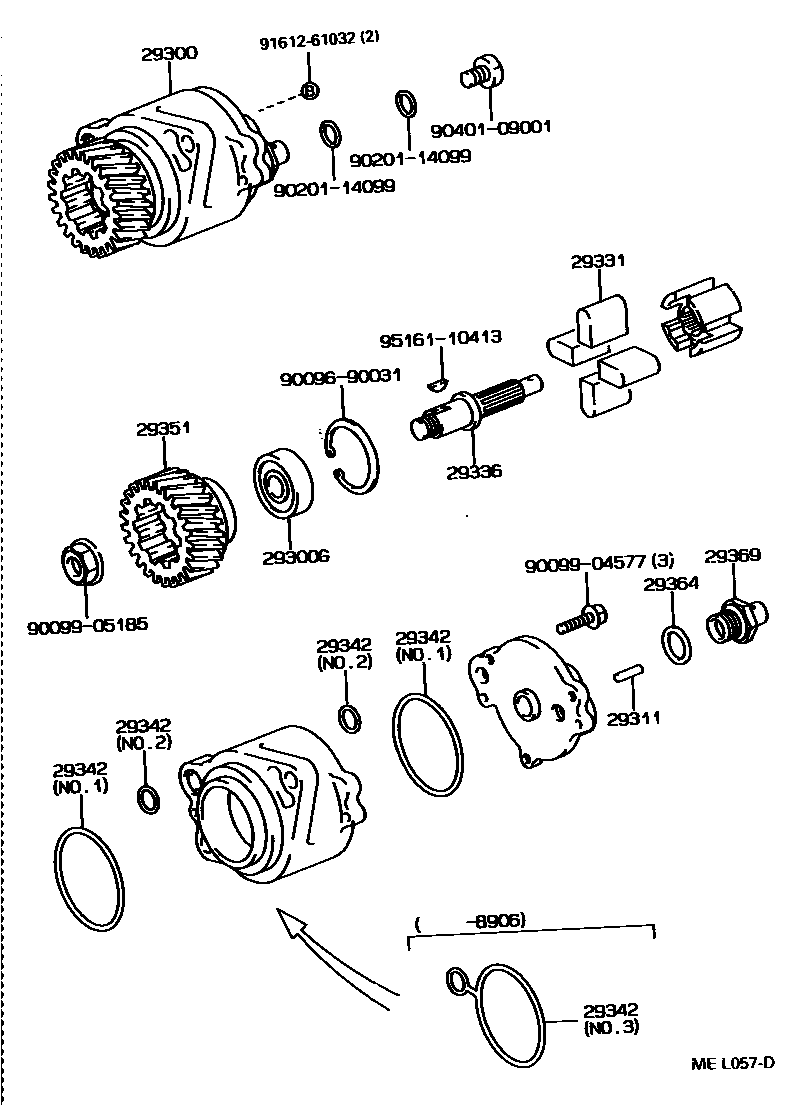

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-58050i11B,14B,3B..BU7#,8#,9#198808-199505

sub29300-58060

29300GBEARING, BALL

main90099-10185i11B,14B,3B..BU7#,8#,9#198808-199505

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i11B,14B,3B..BU7#,8#,9#198808-199505

29331BLADE, VACUUM PUMP, A

main29331-58050i11B,14B,3B..BU7#,8#,9#198808-199405

main29331-67020i3B..BU79,89,92199405-199505

29336SHAFT, VACUUM PUMP

main29336-58050i11B,14B,3B..BU7#,8#,9#198808-199505

29342PACKING, VACUUM PUMP

main29342-58010i11B,14B..BU76,8#,96198808-199505

NO.1

main29342-58020i11B,14B..BU76,8#,96198808-198906

NO.2

main29342-58050i11B,14B..BU76,8#,96198808-198906

NO.3

main29342-64010i11B,14B,3B..BU7#,8#,9#198906-199505

NO.2

29351GEAR, VACUUM PUMP

main29351-58050i11B,14B,3B..BU7#,8#,9#198808-199505

29364WASHER, VACUUM PUMP

main29364-66010i11B,14B,3B..BU7#,8#,9#198808-199505

29369VALVE SUB-ASSY, CHECK

main29369-64030i11B,14B,3B..BU7#,8#,9#198808-199505

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161261032

main91612-61032

9516110413

main95161-10413

16 parts on this diagram · 1 diagram in section
