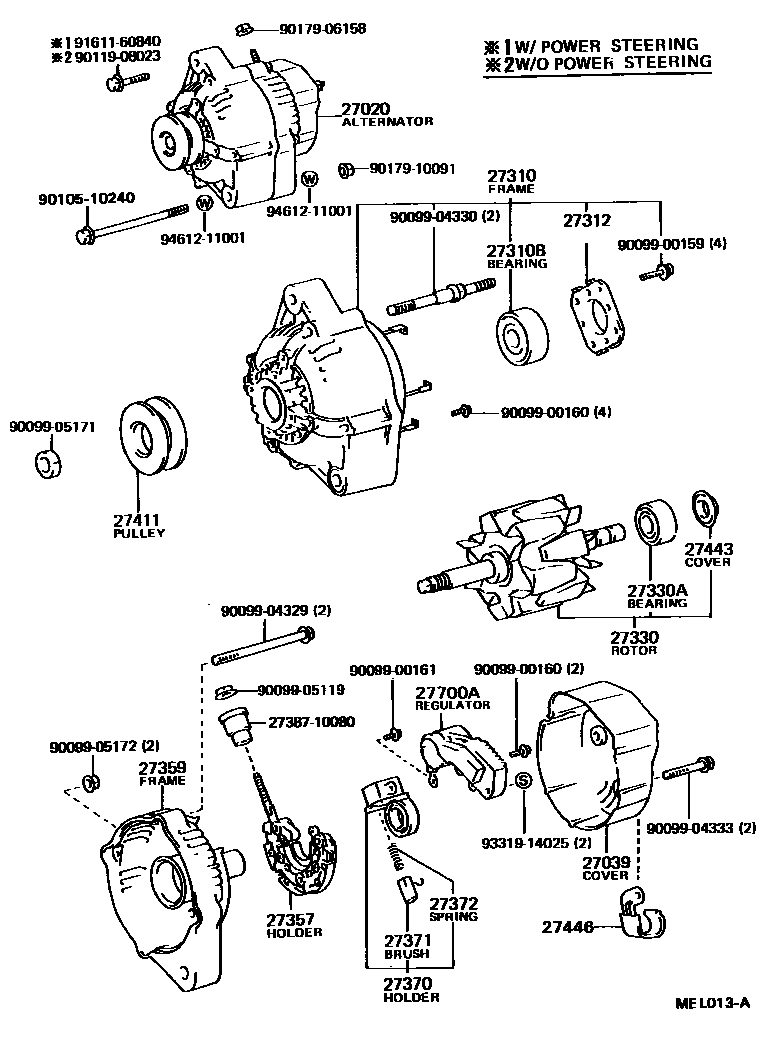

ALTERNATOR

0001 112V 45A,50A 0002 124V 30A

27020ALTERNATOR ASSY

main27060-58010i11B..BU84198808-199202

12V 45A

main27060-58020i11B,14B,3B..BU7#,88,9#198808-199309

24V 30A

main27060-58180i11B,3B..BU84,89199202-199309

12V 50A

main27060-58210i3B..BU89199309-199505

12V 50A

main27060-58220i3B..BU79,92199309-199505

24V 30A

27039COVER, ALTERNATOR REAR END

main27039-11190i14B,3B..BU79,9#199309-199311

main27039-72010i11B,14B,3B..BU7#,88,9#198808-199309

sub27039-15170

main27039-72150i11B,3B..BU84,89198808-199505

main27039-73020i14B,3B..BU79,9#199309-199505

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-58040i3B..BU79,92198808-199505

main27310-72150i11B..BU84198808-199105

sub27310-72151

main27310-72151i11B..BU84199105-199202

main27310-72171i11B,3B..BU84,89199202-199505

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10170i11B..BU84198808-199105

sub90099-10198

main90099-10178i3B..BU79,92198808-199505

main90099-10198i11B,3B..BU84,89199105-199505

sub90099-10229

27312PLATE, RETAINER

main27312-70200i11B,14B,3B..BU7#,88,9#198808-199505

main27312-72120i11B,3B..BU84,89198808-199505

27330ROTOR ASSY, ALTERNATOR

main27330-58040i11B,14B,3B..BU7#,88,9#198808-199505

main27330-72150i11B,3B..BU84,89198808-199505

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i11B,14B,3B..BU7#,88,9#198808-199505

main90099-10154i11B,3B..BU84,89198808-199505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i3B..BU79,92198808-199505

main27357-72150i11B,3B..BU84,89198808-199505

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i11B,14B,3B..BU7#,88,9#198808-199505

sub27359-16181

sub27384-16380

main27359-72150i11B,3B..BU84,89198808-199505

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i14B,3B..BU79,9#199106-199505

main27370-63021i11B,14B..BU76,8#,96198808-199105

sub27370-70300

main27370-70300i11B,14B,3B..BU7#,88,9#199105-199309

sub27370-35060

27371BRUSH, ALTERNATOR

main27371-63020i11B,14B..BU76,8#,96198808-199105

sub27371-70300

main27371-70300i11B,14B,3B..BU7#,8#,9#199105-199505

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3B..BU79,89,92198808-199505

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-58040i11B,14B,3B..BU7#,88,9#198808-199505

main27411-58060i11B,3B..BU84,89198808-199505

27443COVER, ALTERNATOR BEARING

main27443-63020i11B,14B,3B..BU7#,8#,9#198808-199505

27446CLIP, ALTERNATOR CORD

main27446-58050i3B..BU79,92198808-199505

main27446-58060i11B..BU84198808-198810

sub27446-58140

main27446-58140i11B,3B..BU84,89198810-199505

27700AREGULATOR ASSY, GENERATOR

main27700-10071i11B,3B..BU84,89198808-199309

sub27700-58030

main27700-58020i11B,14B,3B..BU7#,88,9#198808-199309

main27700-58040i14B,3B..BU79,9#199309-199505

sub27700-58060

main27700-58050i3B..BU89199309-199505

sub27700-58070

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510240

main90105-10240

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9331914025

main93319-14025

9461211001

main94612-11001

33 parts on this diagram · 2 diagrams in section
