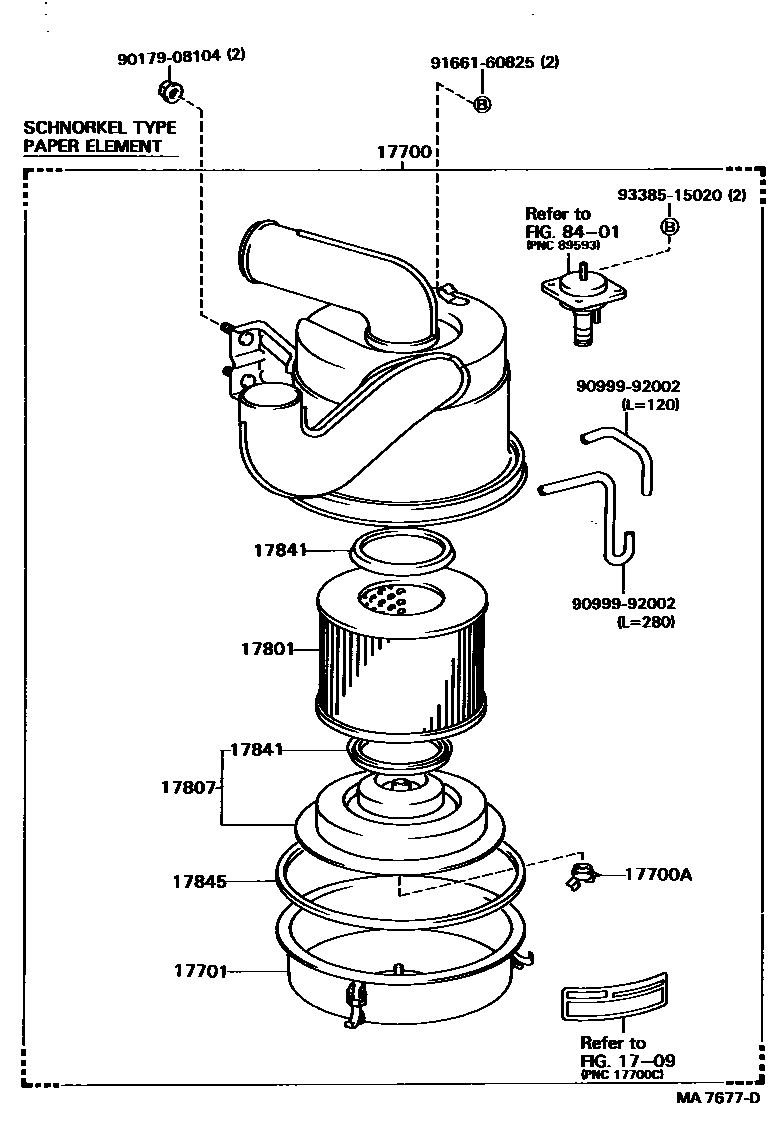

AIR CLEANER

0001 1 0003 1 0005 1 0008 1

1709

17700CLEANER ASSY, AIR

main17700-56350i11B,3B..BU84,89198808-199505

main17700-58221i11B,14B,3B..BU7#,88,9#198808-199505

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i11B,14B,3B..BU7#,8#,9#198808-199505

17701CASE SUB-ASSY, AIR CLEANER

main17701-56150i11B,14B,3B..BU7#,8#,9#198808-199505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i11B,14B,3B..BU7#,8#,9#198808-199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i11B,3B..BU84,89198808-199505

main17807-58010i11B,14B,3B..BU7#,88,9#198808-199505

17841GASKET, FILTER ELEMENT

main17841-44030i11B,14B,3B..BU7#,8#,9#198808-199505

17845GASKET, AIR CLEANER CAP

main17845-56020i11B,14B,3B..BU7#,8#,9#198808-199505

8401

9017908104

main90179-08104

9099992002

main90999-92002

9166160825

main91661-60825

9338515020

main93385-15020

13 parts on this diagram · 4 diagrams in section
