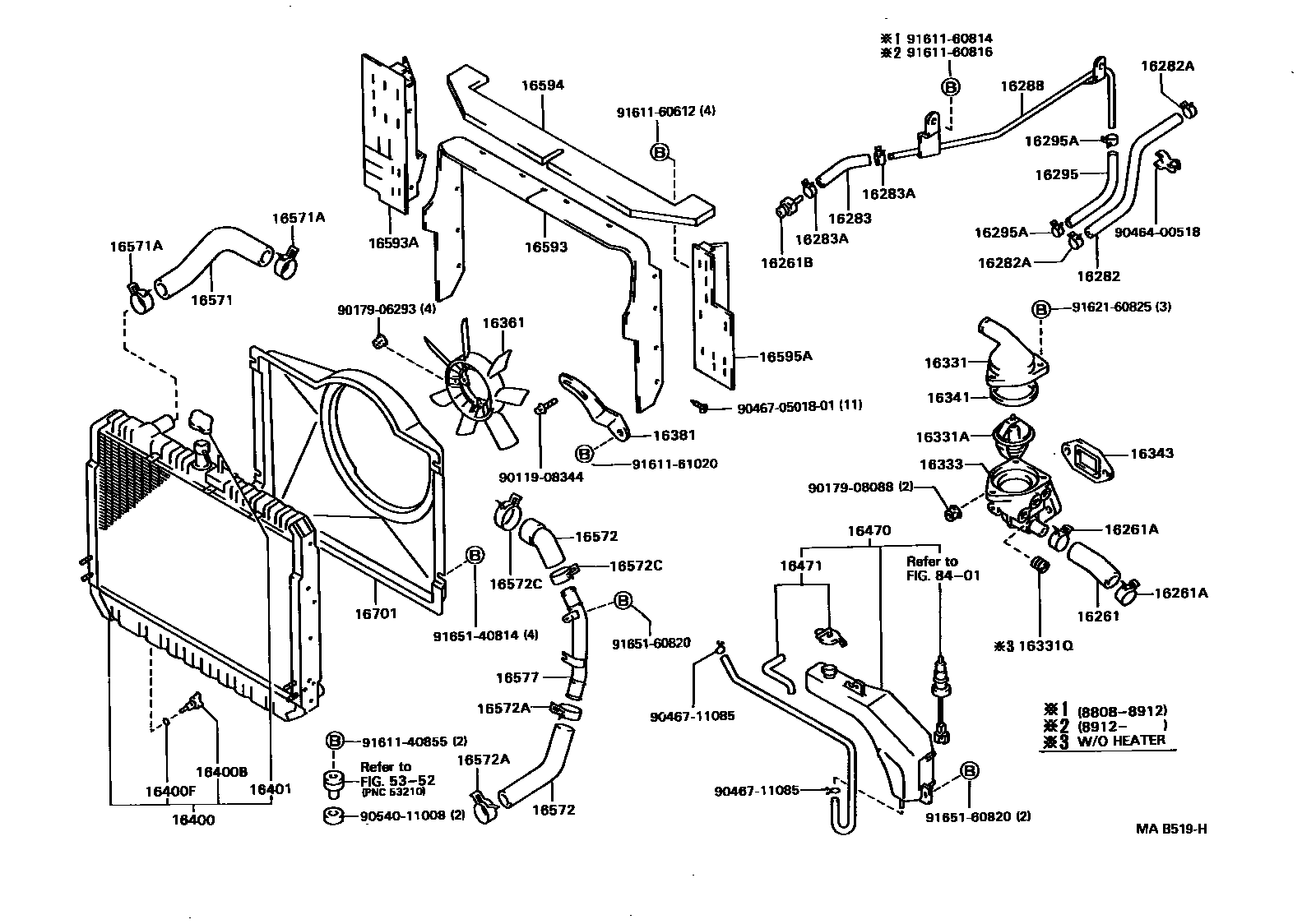

RADIATOR & WATER OUTLET

0001 1 0004 1

16261HOSE, WATER BY-PASS

main16261-56012i11B,14B,3B..BU7#,8#,9#¥770198808-199505

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-28004i11B,14B..BU76,8#,96¥320198808-199505

sub90467-28007¥240

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-52028i11B,14B..BU76,88¥410198808-199210

16282HOSE, WATER BY-PASS, NO.5

main16282-56010i11B,14B..BU76,88¥1,000198808-199210

16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

main90467-15004i11B,14B..BU76,88¥240198808-199210

16283HOSE, WATER BY-PASS, NO.6

main16283-56010i11B,14B..BU76,88¥450198808-199210

16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

main90467-15004i11B,14B..BU76,88¥240198808-199210

16288PIPE, WATER BY-PASS, NO.4

main16288-56010i11B,14B..BU76,88¥2,630198808-199210

16295HOSE, WATER BY-PASS, NO.7

main16295-56010i11B,14B..BU76,88¥580198808-199210

16295ACLIP(FOR WATER BY-PASS HOSE NO.7)

main90467-15004i11B,14B..BU76,88¥240198808-199210

16331OUTLET, WATER

main16331-56020i11B,14B,3B..BU7#,88,9#¥3,950198808-199505

main16331-56040i11B,3B..BU84,89¥4,680198808-199505

16331ATHERMOSTAT

main90916-03077i11B,14B,3B..BU84,89,96¥3,070198808-199505

*WAX 82-95

sub90916-03102¥2,200

main90916-03080i11B,14B,3B..BU7#,88,92¥2,790198808-199505

*WAX 88-100

sub90916-03103¥2,420

16331QPLUG(FOR WATER OUTLET)

main90345-54005i11B,14B..BU76,88¥270198808-199505

16333HOUSING, WATER OUTLET

main16333-56070i11B,14B..BU76,8#,96¥6,100198808-198904

sub16333-56071¥9,200

sub92112-60835¥190

main16333-56071i11B,14B..BU76,8#,96¥9,200198904-198908

sub16333-56072¥10,100

sub16343-56020¥520

main16333-56072i11B,14B,3B..BU7#,8#,9#¥10,100198908-199505

sub16333-58050¥10,100

16341GASKET, WATER OUTLET

main16341-56030i11B,14B,3B..BU7#,8#,9#¥210198808-199505

16343GASKET, WATER OUTLET HOUSING

main16343-56021i11B,14B..BU76,8#,96¥510198908-199001

sub16343-56022¥510

main16343-56022i11B,14B,3B..BU7#,8#,9#¥510199001-199304

sub16343-56023¥340

main16343-56023i14B,3B..BU79,89,9#¥340199304-199505

16361FAN

main16361-38010i11B,14B..BU76,88,96¥6,400198808-199310

main16361-56040i11B..BU84¥8,400198808-199210

main16361-56070i3B..BU79,89,92¥5,700199210-199505

16381BAR, FAN BELT ADJUSTING

main16381-56060i11B,14B,3B..BU7#,88,9#¥2,090198808-199505

sub16381-58120¥1,990

main16381-56070i11B,3B..BU84,89¥1,800198808-199505

sub16381-58110¥1,950

16400RADIATOR ASSY

main16400-56190i3B..BU89¥40,800199210-199505

main16400-58090i11B..BU84¥37,000198808-199210

main16400-58111i14B..BU96¥48,300198808-199310

sub16400-58143¥42,000

main16400-58122i3B..BU79,92¥45,700199210-199505

main16400-58143i11B,14B..BU76,88¥42,000198808-199210

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i11B,14B,3B..BU7#,88,9#¥360198808-199505

main16417-24200i3B..BU89¥390199210-199505

main16417-58090i11B..BU84¥350198808-199210

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i11B,14B,3B..BU7#,84,88,9#¥190198808-199505

main16418-24200i3B..BU89¥320199210-199505

16401CAP SUB-ASSY, RADIATOR

main16401-71010i11B,14B,3B..BU7#,88,9#¥1,170198808-199505

sub16401-54750¥900

16470TANK ASSY, RADIATOR RESERVE

main16470-56121i11B,3B..BU84,89¥4,430198808-199505

main16470-58020i11B,14B,3B..BU7#,88,9#¥4,910198808-199505

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052i11B,3B..BU84,89198808-199505

main16405-56070i11B,14B,3B..BU7#,88,9#198808-199505

16571HOSE, RADIATOR, INLET

main16571-56060i11B,3B..BU84,89¥2,380198808-199505

main16571-58030i11B,14B,3B..BU7#,88,9#¥2,010198808-199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001i11B,14B,3B..BU7#,8#,9#¥620198808-199505

sub90467-41002¥520

16572HOSE, RADIATOR, OUTLET

main16572-56090i11B,14B..BU76,8#,96¥1,290198808-199111

WATER PUMP SIDE

sub16572-56091¥880

sub96111-10490¥110

main16572-56091i14B,3B..BU79,89,9#¥880199309-199505

main16572-56091i11B,14B,3B..BU7#,8#,9#¥880199111-199309

WATER PUMP SIDE,WATER PUMP SIDE

main16573-56050i11B,3B..BU84,89¥1,830198808-199505

RADIATOR SIDE

sub16573-58070¥1,760

main16573-58020i11B,14B,3B..BU7#,88,9#¥1,830198808-199505

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510i11B,14B,3B..BU7#,8#,9#¥260198808-199505

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10490i11B,14B,3B..BU7#,8#,9#¥110199111-199505

PIPE SIDE

main96111-10510i11B,14B..BU76,8#,96¥260198808-199111

PIPE SIDE

main96111-10570i11B,14B,3B..BU7#,8#,9#¥160198808-199505

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-56050i11B,14B,3B..BU7#,8#,9#¥4,140198808-199505

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030i11B,3B..BU84,89¥2,740198808-199505

main16593-58050i11B,14B,3B..BU7#,88,9#¥4,730198808-199505

16593AGUIDE, RADIATOR AIR, NO.1 RH

main16593-56040i11B,3B..BU84,89¥5,100198808-199505

main16593-58060i11B,14B,3B..BU7#,88,9#¥7,500198808-199505

16594GUIDE, RADIATOR AIR, NO.2

main16594-56020i11B,3B..BU84,89¥1,390198808-199505

main16594-58030i11B,14B,3B..BU7#,88,9#¥1,810198808-199505

16595AGUIDE, RADIATOR AIR, NO.1 LH

main16595-56020i11B,3B..BU84,89¥4,330198808-199505

main16595-58040i11B,14B,3B..BU7#,88,9#¥5,900198808-199505

16701SHROUD SUB-ASSY, FAN

main16701-56310i11B..BU84¥7,100198808-199210

main16701-56321i3B..BU89¥7,100199210-199505

main16701-58040i11B,14B..BU76,88,96¥9,600198808-199310

main16701-58052i3B..BU79,92¥8,400199210-199505

5352

8401

9011908344

main90119-08344¥180

9017906293

main90179-06293¥90

9017908088

main90179-08088¥160

9046400518

main90464-00518¥120

904670501801

main90467-0501801

9046711085

main90467-11085¥100

9054011008

main90540-11008¥330

9161140855

main91611-40855¥140

9161160612

main91611-60612¥130

9161160814

main91611-60814¥100

9161160816

main91611-60816¥230

9161161020

main91611-61020¥240

9162160825

main91621-60825¥130

9165140814

main91651-40814¥180

9165160820

main91651-60820¥130

52 parts on this diagram · 2 diagrams in section
