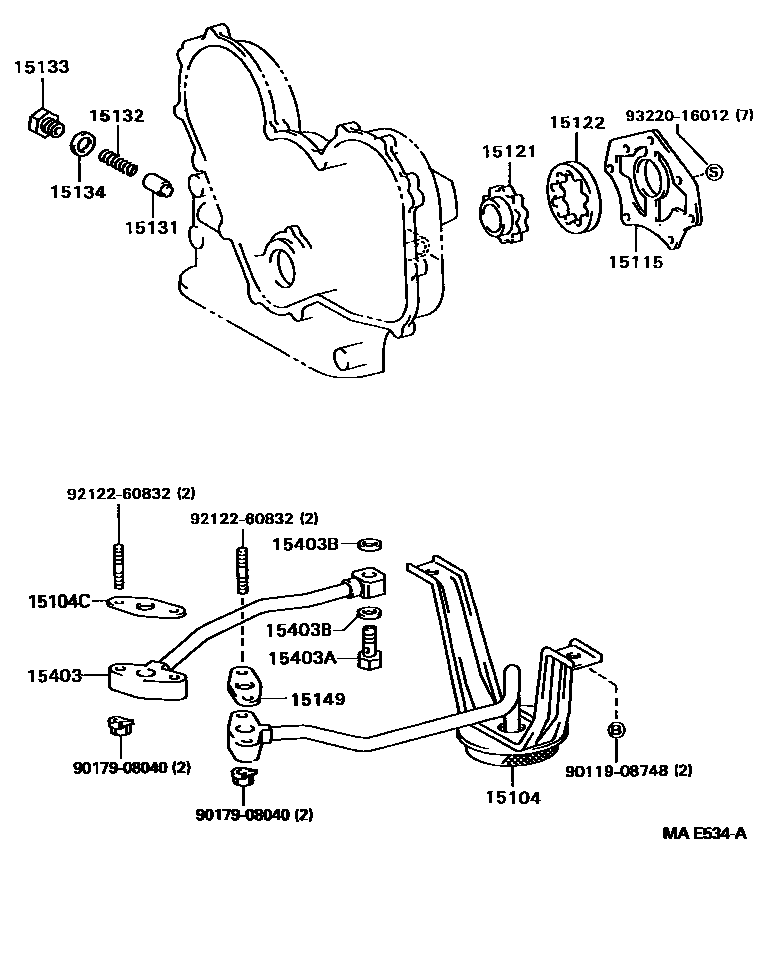

ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-56060i11B,14B..BU76,8#,96198808-198910

sub15104-56061

main15104-56061i11B,14B,3B..BU7#,8#,9#198910-199505

sub15104-56062

15104CGASKET(FOR OIL STRAINER)

main15149-56020i11B,14B,3B..BU7#,8#,9#198808-199505

sub15149-58010

15115COVER, OIL PUMP

main15115-56040i11B,14B,3B..BU7#,8#,9#198808-199505

15121GEAR, OIL PUMP DRIVE

main15121-56040i11B,14B,3B..BU7#,8#,9#198808-199505

15122GEAR, OIL PUMP DRIVEN

main15122-56040i11B,14B,3B..BU7#,8#,9#198808-199505

15131VALVE, OIL PUMP RELIEF

main15131-24010i11B,14B,3B..BU7#,8#,9#198808-199505

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i11B,14B,3B..BU7#,8#,9#198808-199505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i11B,14B,3B..BU7#,8#,9#198808-199505

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i11B,14B,3B..BU7#,8#,9#198808-199505

15149GASKET, OIL STRAINER FLANGE

main15149-56020i11B,14B,3B..BU7#,8#,9#198808-199505

sub15149-58010

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i11B,14B,3B..BU7#,8#,9#198808-199505

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i11B,14B,3B..BU7#,8#,9#198808-199505

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018i11B,14B,3B..BU7#,8#,9#198808-199505

9011908748

main90119-08748

9017908040

main90179-08040

9212260832

main92122-60832

9322016012

main93220-16012

17 parts on this diagram · 1 diagram in section
