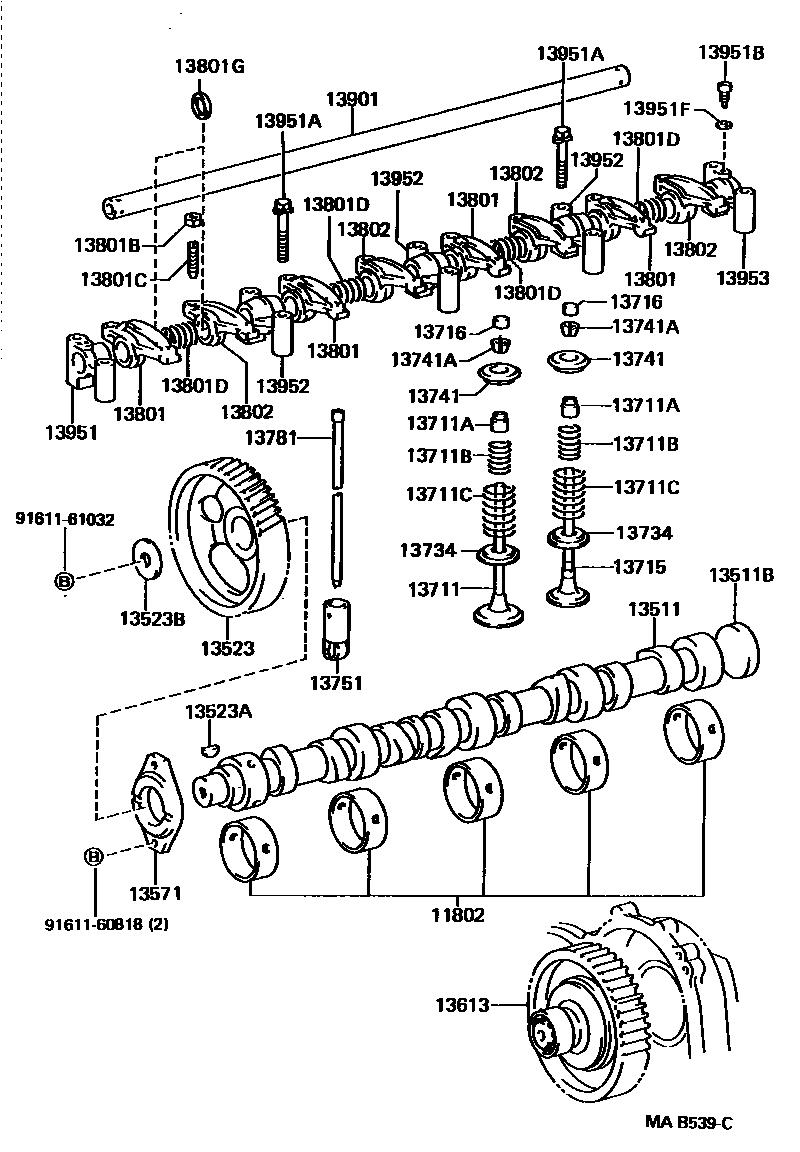

CAMSHAFT & VALVE

11802BEARING SET, CAMSHAFT

main11802-56030i11B,14B,3B..BU7#,8#,9#198808-199505

STD

13511CAMSHAFT

main13511-56060i3B..BU79,89,92199210-199505

sub13511-56061

main13511-56070i11B,14B..BU76,84,88,96198808-199505

sub13511-56071

13511BPLUG, EXPANSION(FOR CAMSHAFT)

main90331-58001i11B,14B,3B..BU7#,8#,9#198808-199505

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-56040i11B,14B,3B..BU7#,8#,9#198808-199505

sub13523-58010

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main95161-10519i11B,14B,3B..BU7#,8#,9#198808-199301

main95161-30519i14B,3B..BU79,89,9#199301-199505

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10227i11B,14B,3B..BU7#,8#,9#198808-199505

13571PLATE, CAMSHAFT THRUST

main13571-56030i11B,14B,3B..BU7#,8#,9#198808-199505

13613GEAR, INJECTION PUMP DRIVE

main22407-56030i11B,14B,3B..BU7#,8#,9#198808-199505

13711VALVE, INTAKE

main13711-56060i11B..BU76,84198808-199210

main13711-58020i14B,3B..BU79,88,89,9#198808-199505

sub13711-58021

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02076i11B,14B,3B..BU7#,8#,9#198808-199505

13711BSPRING, COMPRESSION(FOR INNER)

main90501-33012i11B..BU76,84198808-199505

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-45032i11B,14B,3B..BU7#,8#,9#198808-199505

13715VALVE, EXHAUST

main13715-56060i11B..BU76,84198808-199210

main13715-58040i14B..BU88,96198808-199505

sub13715-58041

main13715-58050i3B..BU79,89,92199210-199505

sub13715-58051

13716CAP, VALVE STEM

main13716-56010i11B,14B,3B..BU7#,8#,9#198808-199505

13734SEAT, VALVE SPRING

main13734-56010i11B,14B,3B..BU7#,8#,9#198808-199505

13741RETAINER, VALVE SPRING

main13741-56040i11B,14B,3B..BU7#,8#,9#198808-199505

13741ALOCK, VALVE SPRING RETAINER

main90913-03024i11B,14B,3B..BU7#,8#,9#198808-199505

13751LIFTER, VALVE

main13750-58010i11B,14B,3B..BU7#,8#,9#198808-199505

sub13750-58011

13781ROD, VALVE PUSH

main13781-56020i11B,14B,3B..BU7#,8#,9#198808-199505

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-56050i3B..BU79,89,92199210-199505

sub13811-58020

main13811-56060i11B,14B..BU76,84,88,96198808-199505

sub13811-58030

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90179-08129i11B,14B,3B..BU7#,8#,9#198808-199505

13801CSCREW, VALVE ADJUSTING

main90913-05022i11B,14B,3B..BU7#,8#,9#198808-199505

sub90913-05025

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16114i11B,14B,3B..BU7#,8#,9#198808-199505

13801GWASHER, PLATE(FOR VALVE ROCKER ARM)

main90201-19009i11B,14B,3B..BU7#,8#,9#198808-199505

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-56060i11B,14B..BU76,84,88,96198808-199505

sub13811-58030

main13812-56040i3B..BU79,89,92199210-199505

sub13812-58020

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-56030i11B,14B,3B..BU7#,8#,9#198808-199505

13951SUPPORT, VALVE ROCKER, NO.1

main13951-56030i3B..BU79,89,92199210-199505

main13951-56040i11B,14B..BU76,84,88,96198808-199505

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08165i11B,14B,3B..BU7#,8#,9#198808-199505

*8-1.25X53-30

main90105-08177i11B,14B,3B..BU7#,8#,9#198808-199505

*8-1.25X63-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main13958-56010i11B,14B,3B..BU7#,8#,9#198808-199505

13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)

main90201-06350i11B,14B,3B..BU7#,8#,9#198808-199505

13952SUPPORT, VALVE ROCKER, NO.2

main13952-56030i3B..BU79,89,92199210-199505

main13952-56040i11B,14B..BU76,84,88,96198808-199505

13953SUPPORT, VALVE ROCKER, NO.3

main13953-56030i3B..BU79,89,92199210-199505

main13953-56040i11B,14B..BU76,84,88,96198808-199505

9161160818

main91611-60818

9161161032

main91611-61032

34 parts on this diagram · 1 diagram in section
