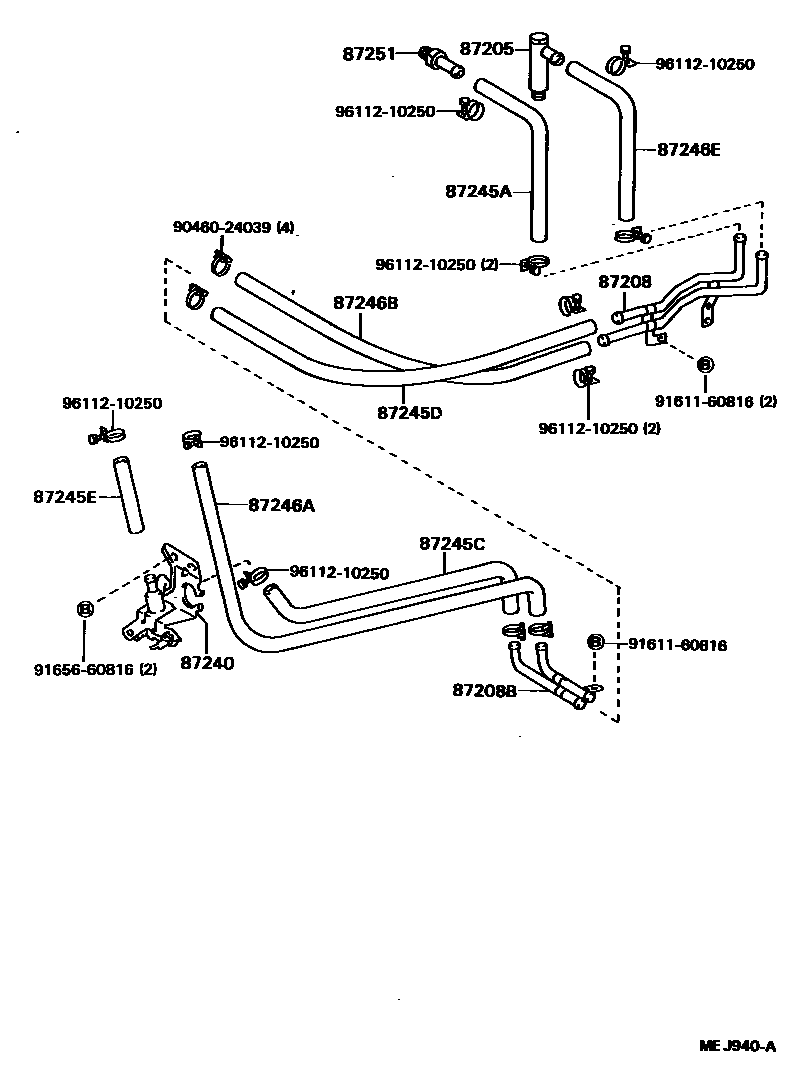

HEATING & AIR CONDITIONING - WATER PIPING

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-95400iBU75,85198708-198808

87208PIPE SUB-ASSY, HEATER WATER

main87208-95402iBU75,85198708-198808

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-95406iBU75,85198708-198808

87240VALVE ASSY, HEATER WATER

main87240-95408iBU75,85198708-198808

87245AHOSE, HEATER WATER, INLET A

main87245-95467iBU75,85198708-198808

87245CHOSE, HEATER WATER ,INLET C

main87245-95465iBU75,85198708-198808

87245DHOSE, HEATER WATER, INLET D

main99556-30500iBU75,85198708-198808

L=500

87245EHOSE, HEATER WATER, INLET E

main99556-30100iBU75,85198708-198808

*H,L=60

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iBU75,85198708-198808

L=700

sub99556-31000

87246BHOSE, HEATER WATER, OUTLET B

main87245-95464iBU75,85198708-198808

87246EHOSE, HEATER WATER, OUTLET E

main87245-95466iBU75,85198708-198808

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iBU75,85198708-198808

9046024039

main90460-24039

9161160816

main91611-60816

9165660816

main91656-60816

9611210250

main96112-10250

16 parts on this diagram · 1 diagram in section
