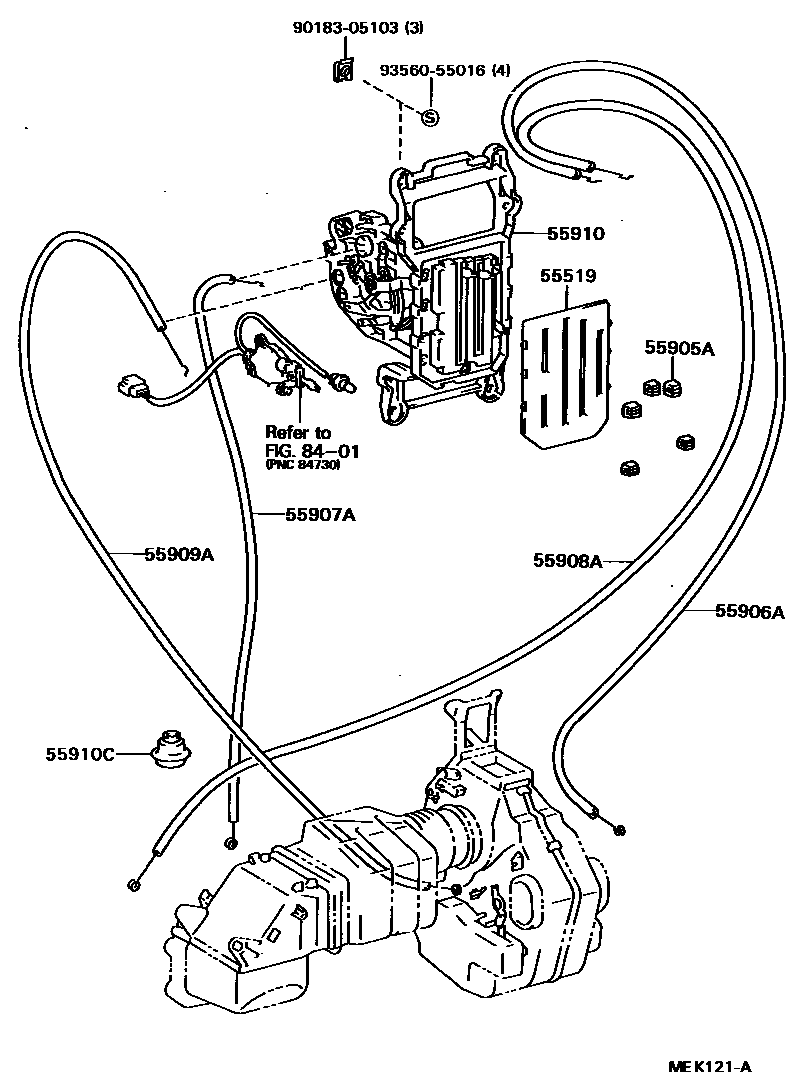

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55519PLATE, HEATER CONTROL NAME

main55519-95406iBU75,85198708-198808

55905AKNOB, HEATER CONTROL

main55905-10110iBU75,85198708-198808

CABLE LEVER

main55905-95707iBU75,85198708-198808

BLOWER SW

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95407iBU75,85198708-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95407iBU75,85198708-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95403iBU75,85198708-198808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95407iBU75,85198708-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95409iBU75,85198708-198808

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU75,85198708-198808

8401

9018305103

main90183-05103

9356055016

main93560-55016

11 parts on this diagram · 2 diagrams in section
