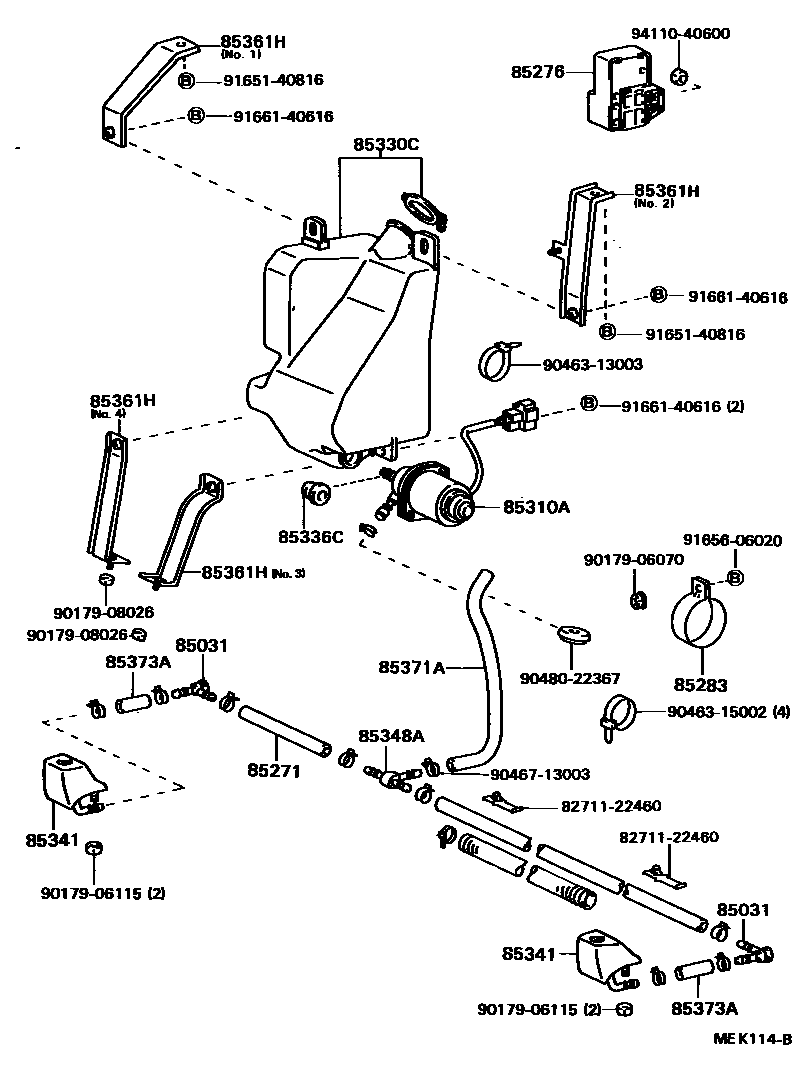

HEADLAMP CLEANER
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
L=190
85276RELAY, CLEANER CONTROL
85283BRACKET, HEADLAMP CLEANER WASHER
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330CJAR ASSY, HEADLAMP CLEANER WASHER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
sub85381-37010
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85361HBRACKET, WASHER
NO.2
NO.3
NO.4
NO.1
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=640
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=40
8271122460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22460
9017906070
main90179-06070
9017906115
main90179-06115
9017908026
main90179-08026
9046313003
main90463-13003
9046315002
main90463-15002
9046713003
main90467-13003
9048022367
main90480-22367
9165140816
main91651-40816
9165606020
main91656-06020
9166140616
main91661-40616
9411040600
main94110-40600
24 parts on this diagram · 1 diagram in section
