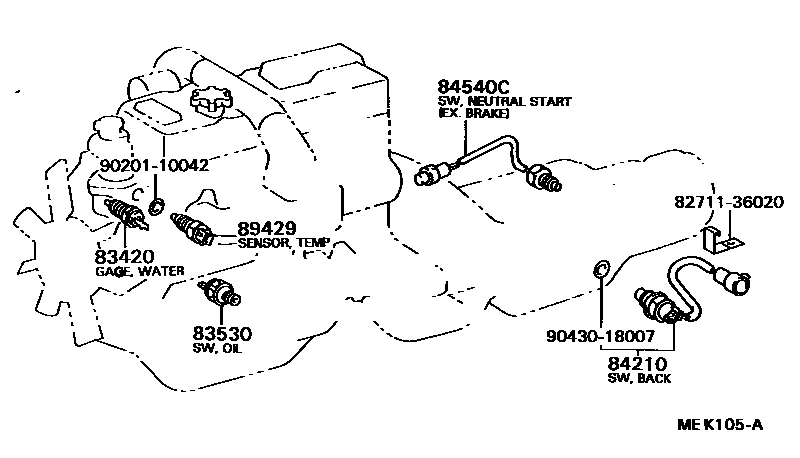

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBU75,85198708-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iBU75,85198708-198808

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iBU75,85198708-198808

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36050iBU75,85198708-198808

89429SENSOR, OIL TEMPERATURE

main89422-30020iBU85198708-198808

sub89422-12010

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

9020110042

main90201-10042

9043018007

main90430-18007

8 parts on this diagram · 6 diagrams in section
