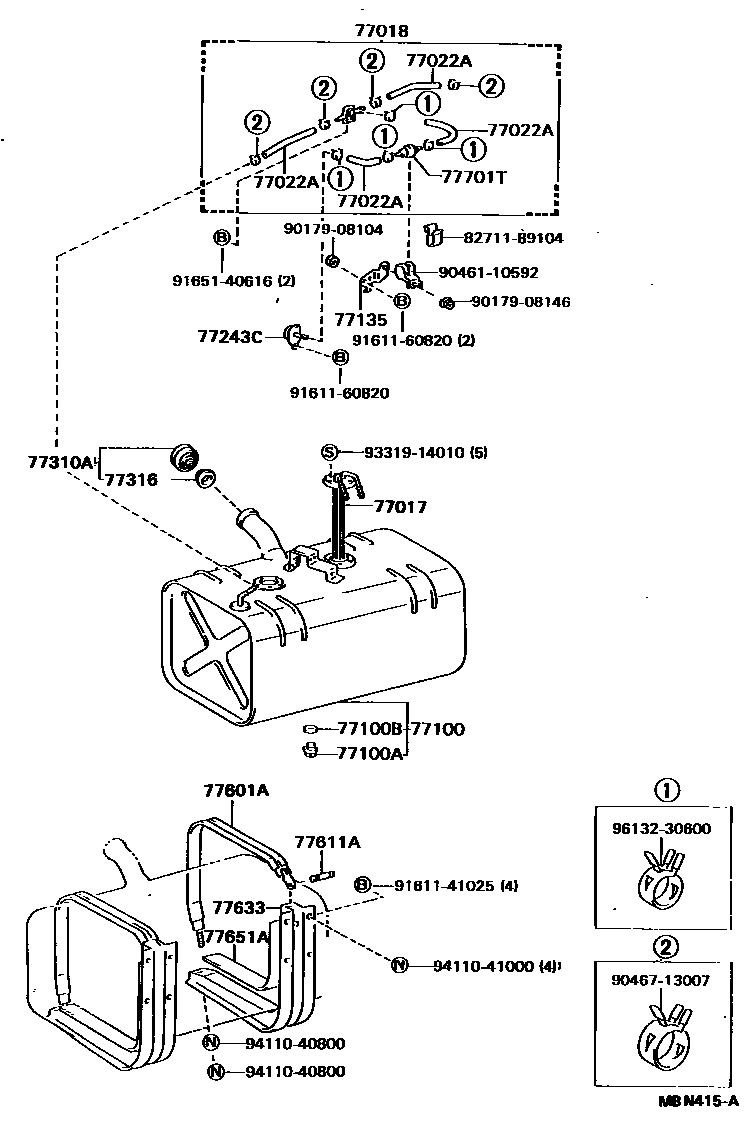

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-36181iBU85198708-198808

main77017-36201iBU75198708-198808

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36161iBU75,85198708-198808

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iBU75,85198708-198808

L=300

sub95338-06030

main95333-06100iBU75,85198708-198808

L=1000

main95333-08030iBU75,85198708-198808

L=300

77100TANK ASSY, FUEL

main77001-3B110iBU75,85198708-198808

77100APLUG(FOR FUEL TANK)

main90105-12116iBU75,85198708-198808

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU75,85198708-198808

77135BRACKET, CHECK VALVE

main77135-36030iBU75,85198708-198808

77243CFILTER, FUEL TANK BREATHER

main77243-36010iBU75,85198708-198808

77310ACAP ASSY, FUEL TANK

main77310-55080iBU75,85198708-198808

sub77310-60100

77316GASKET, FUEL TANK CAP

main77316-27010iBU75,85198708-198808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36140iBU75,85198708-198808

sub77601-37030

main77601-36150iBU75,85198708-198808

W(LONG STAY)

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBU75,85198708-198808

77633STAY, FUEL TANK

main77501-36080iBU75,85198708-198808

W(LONG STAY)

main77633-36090iBU75,85198708-198808

sub77633-36091

77651ACUSHION, FUEL TANK, NO.1

main77651-36100iBU75,85198708-198808

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iBU75,85198708-198808

8271189104WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89104

9017908104

main90179-08104

9017908146

main90179-08146

9046110592

main90461-10592

9046713007

main90467-13007

9161141025

main91611-41025

9161160820

main91611-60820

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

27 parts on this diagram · 2 diagrams in section
