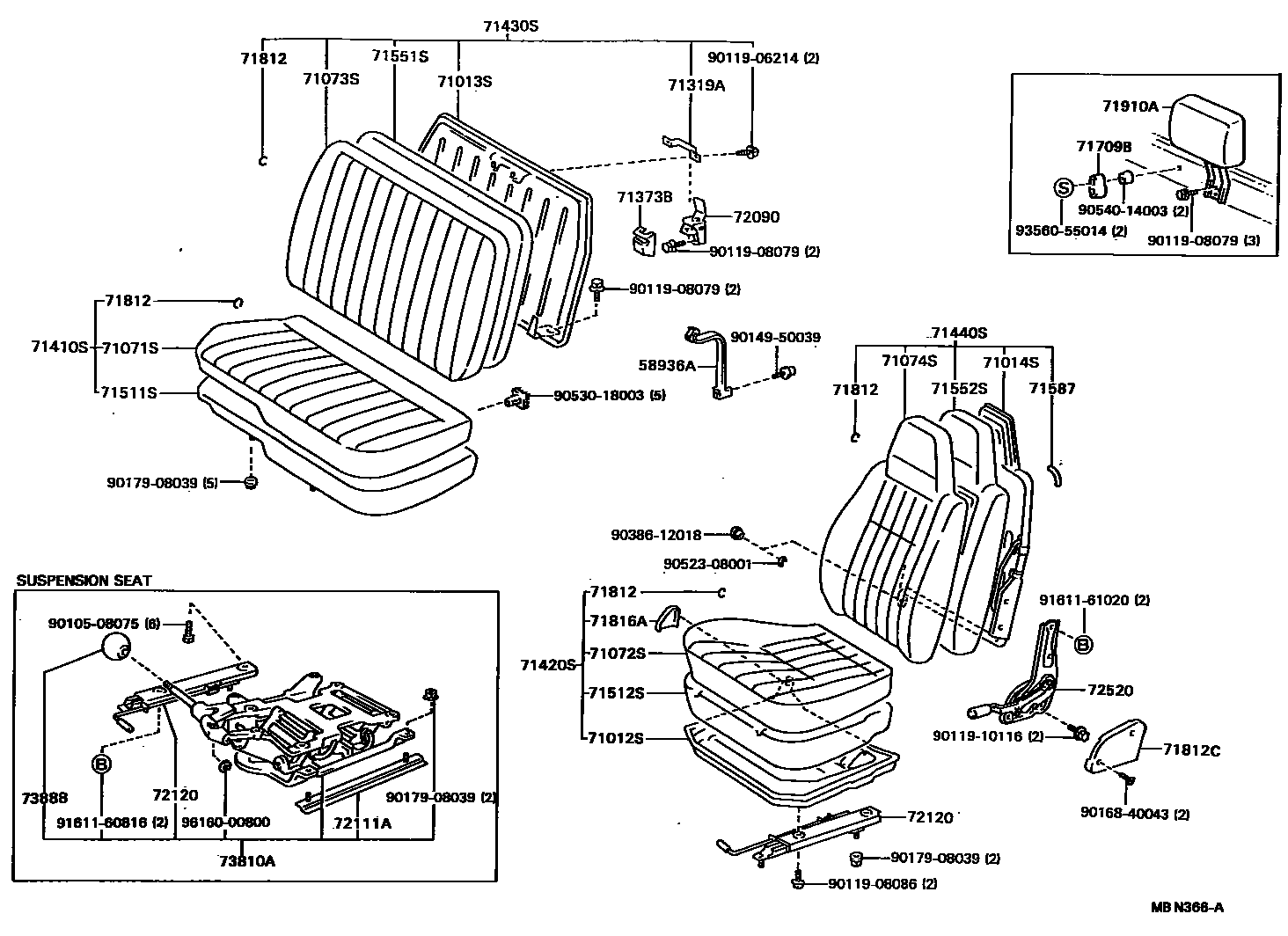

SEAT & SEAT TRACK
58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
W(SUSPENSION SEAT)
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
BLACK,TRIM4#
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
W(SUSPENSION SEAT)
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
W(SUSPENSION SEAT),BROWN,TRIM4#
W(SUSPENSION SEAT & FABRIC),DARK BROWN,DARK BROWN,TRIM4#
W(FABRIC),BROWN(TRIM4),BROWN
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
W(SUSPENSION SEAT & FABRIC),DARK BROWN(TRIM4),DARK BROWN
71319ASTRIKER, FRONT SEATBACK
71373BCOVER, FRONT SEATBACK LOCK
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
BROWN,TRIM4#
W(FABRIC),BROWN(TRIM4),BROWN
W(FABRIC SEAT),BROWN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
BROWN,TRIM4#
W(SUSPENSION SEAT),BROWN,TRIM4#
W(SUSPENSION SEAT & FABRIC),DARK BROWN,DARK BROWN,TRIM4#
W(FABRIC),BROWN(TRIM4),BROWN
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
W(FABRIC),BROWN(TRIM4),BROWN
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
W(FABRIC),BROWN(TRIM4),BROWN
W(SUSPENSION SEAT),BROWN,TRIM4#
W(SUSPENSION SEAT & FABRIC),DARK BROWN,DARK BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
W(SUSPENSION SEAT)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71709BCUSHION SUB-ASSY, SEAT SUPPORT
71812CLIP (FOR FRONT SEAT CUSHION COVER)
sub90468-18008
71812CCOVER, RECLINING ADJUSTER, LH
71816ACOVER, FRONT SEAT CUSHION HINGE, LH
71910AHEADREST ASSY, FRONT SEAT
72090LOCK ASSY, FRONT SEATBACK
72111ARAIL, FRONT INNER SEAT TRACK, UPPER
72120TRACK ASSY, FRONT SEAT, OUTER LH
sub72120-37010
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
BROWN,TRIM4#
73810ASUSPENSION ASSY, SEAT, LH
73888HANDLE, SEAT SUSPENSION CONTROL
9010508075
main90105-08075
9011906214
main90119-06214
9011908079
main90119-08079
9011908086
main90119-08086
9011910116
main90119-10116
9014950039
main90149-50039
9016840043
main90168-40043
9017908039
main90179-08039
9038612018
main90386-12018
9052308001
main90523-08001
9053018003
main90530-18003
9054014003
main90540-14003
9161160816
main91611-60816
9161161020
main91611-61020
9356055014
main93560-55014
9616000800
main96160-00800
46 parts on this diagram · 1 diagram in section
