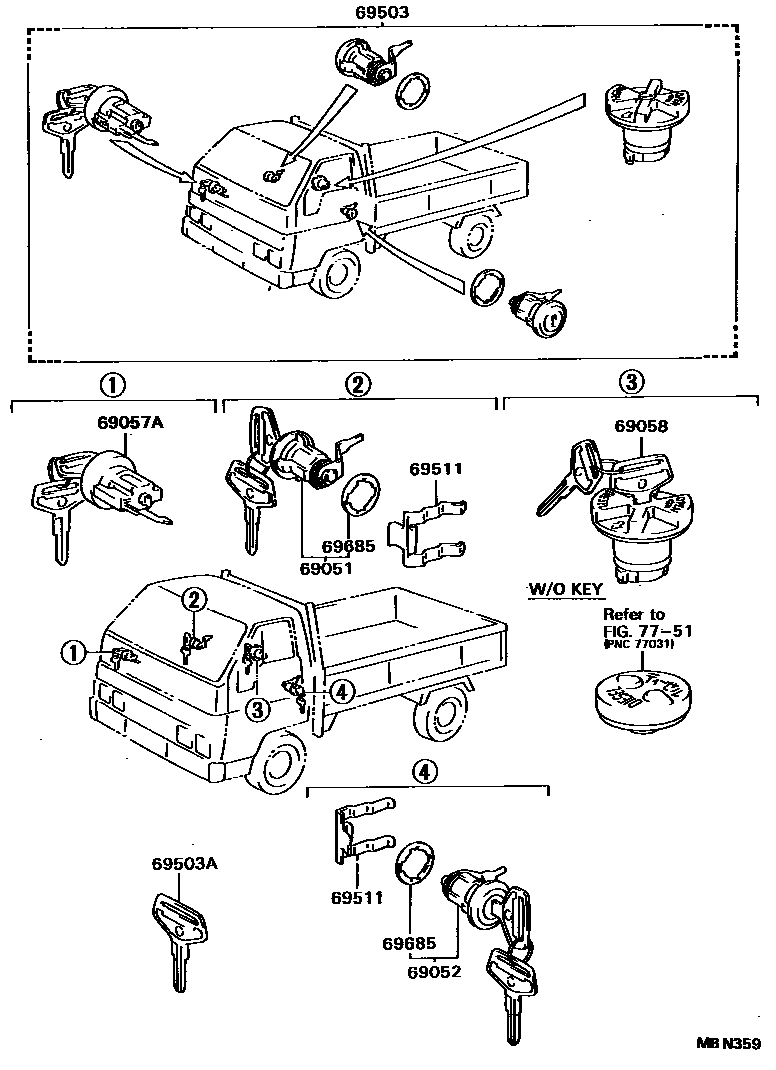

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95404iBU75,85198708-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95404iBU75,85198708-198808

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95414iBU75198708-198808

main69057-95415iBU85198708-198808

sub69057-32100

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95403iBU75,85198708-198808

69503CYLINDER SET, LOCK

main69503-95468iBU75198708-198808

main69503-95469iBU75198708-198808

W(FUEL TANK CAP KEY)

main69503-95470iBU85198708-198808

main69503-95471iBU85198708-198808

W(FUEL TANK CAP KEY)

69503AKEY, BLANK

main90999-00084iBU75,85198708-198808

MASTER KEY,W(*68)

sub90999-00214

main90999-00086iBU75,85198708-198808

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iBU75,85198708-198808

69685PAD, LOCK CYLINDER

main69513-32010iBU75,85198708-198808

7751

9 parts on this diagram · 1 diagram in section
