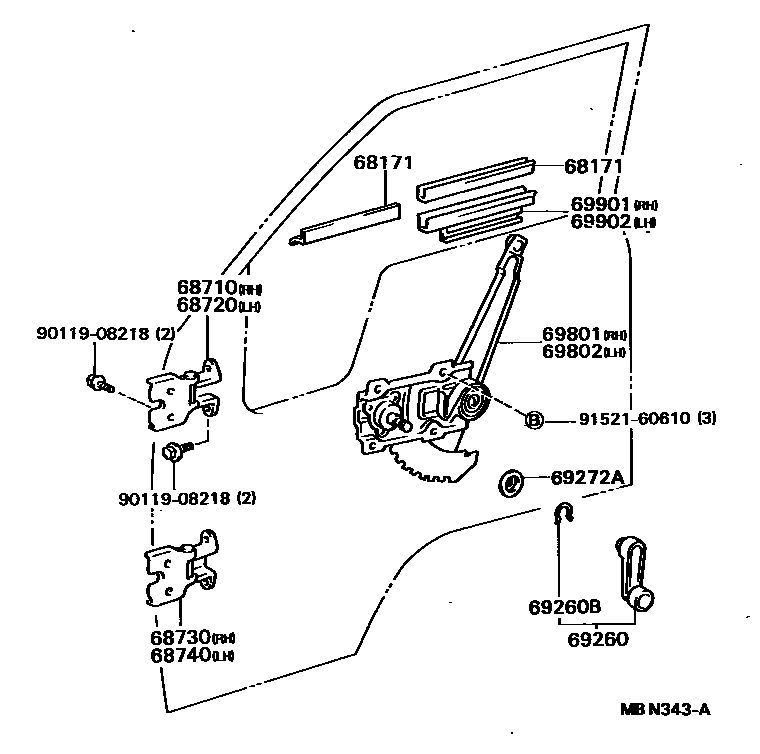

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68219-95400iBU75,85198708-198808

REAR

main68221-95401iBU75,85198708-198808

FRONT

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95403iBU75,85198708-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95403iBU75,85198708-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95403iBU75,85198708-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95403iBU75,85198708-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-06iBU75,85198708-198808

BROWN,TRIM4#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iBU75,85198708-198808

sub90520-01274

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08iBU75,85198708-198808

NATURAL WHITE,TRIM4#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95405iBU75,85198708-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95407iBU75,85198708-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95403iBU75,85198708-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95403iBU75,85198708-198808

9011908218

main90119-08218

9152160610

main91521-60610

14 parts on this diagram · 1 diagram in section
