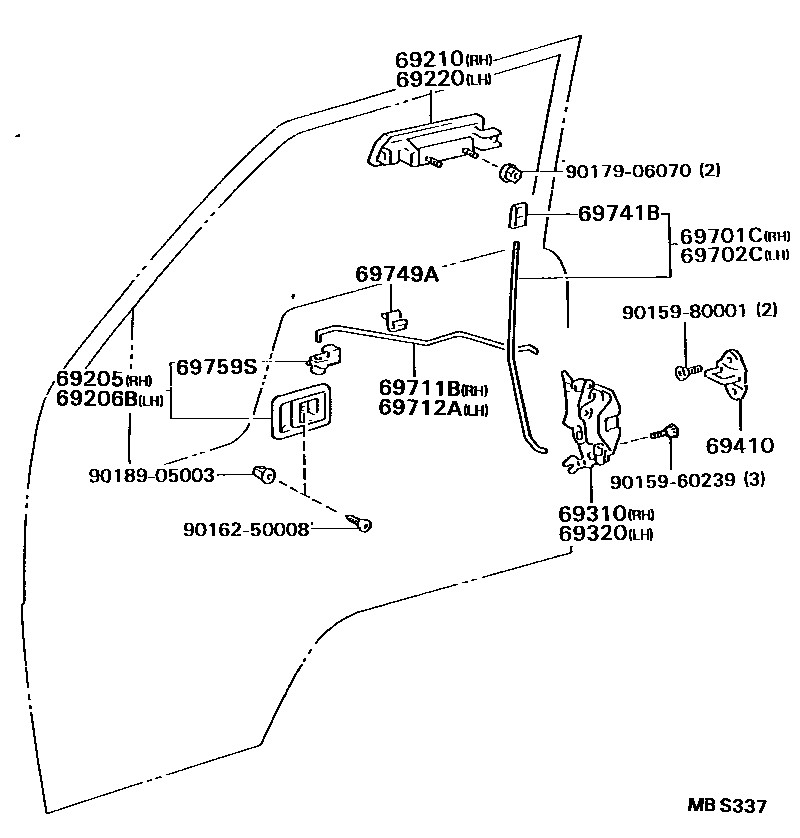

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-16iBU75,85198708-198808

BROWN,TRIM4#

sub69205-10040

sub69205-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-16iBU75,85198708-198808

BROWN,TRIM4#

sub69206-10040

sub69206-10030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iBU75,85198708-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iBU75,85198708-198808

69310LOCK ASSY, FRONT DOOR, RH

main69310-95409iBU75,85198708-198808

69320LOCK ASSY, FRONT DOOR, LH

main69320-95408iBU75,85198708-198808

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iBU75,85198708-198808

sub69410-89103

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iBU75,85198708-198808

BLACK,TRIM4#

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iBU75,85198708-198808

BLACK,TRIM4#

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95403iBU75,85198708-198808

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95401iBU75,85198708-198808

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iBU75,85198708-198808

BLACK,TRIM4#

sub69741-20020

sub69741-32010

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iBU75,85198708-198808

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iBU75,85198708-198808

RH

main69759-20070iBU75,85198708-198808

LH

9015960239

main90159-60239

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

19 parts on this diagram · 1 diagram in section
