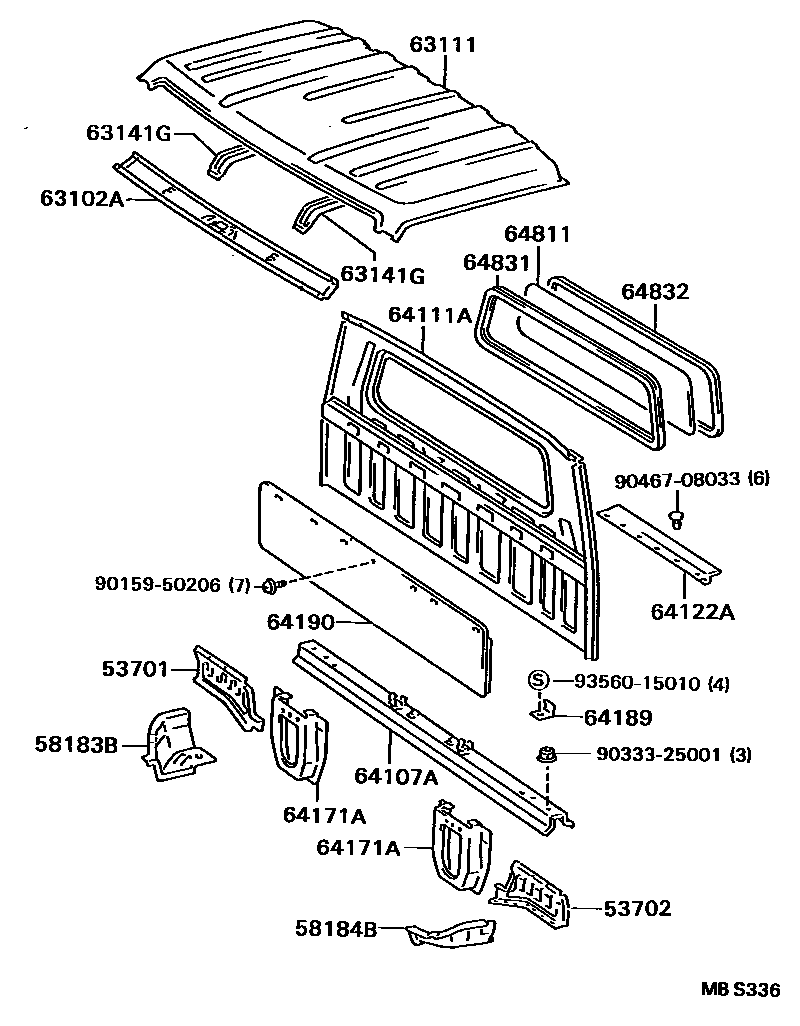

ROOF PANEL & BACK PANEL
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53717-95410
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53718-95411
58183BREINFORCEMENT, REAR MOUNTING, RH
sub58183-95404
58184BREINFORCEMENT, REAR MOUNTING, LH
sub58184-95403
63102APANEL SUB-ASSY, WINDSHIELD HEADER
sub63132-37040
63111PANEL, ROOF
W(ROOF VENTIRATOR)
63141GREINFORCEMENT, ROOF PANEL, NO.1
64107AFRAME SUB-ASSY, BACK
64111APANEL, BACK
sub64100-37870
64122ABAFFLE, DUST REAR BODY
64171ABRACKET SUB-ASSY, REAR MOUNTING
LH
64189CLAMP, BACK PANEL SILENCER
64190SILENCER ASSY, BACK PANEL
64811GLASS, BACK WINDOW
64831WEATHERSTRIP, BACK WINDOW GLASS
sub64831-37050
64832KEY, BACK WINDOW WEATHERSTRIP
sub64832-37040
9015950206
main90159-50206
9033325001
main90333-25001
9046708033
main90467-08033
9356015010
main93560-15010
20 parts on this diagram · 1 diagram in section
