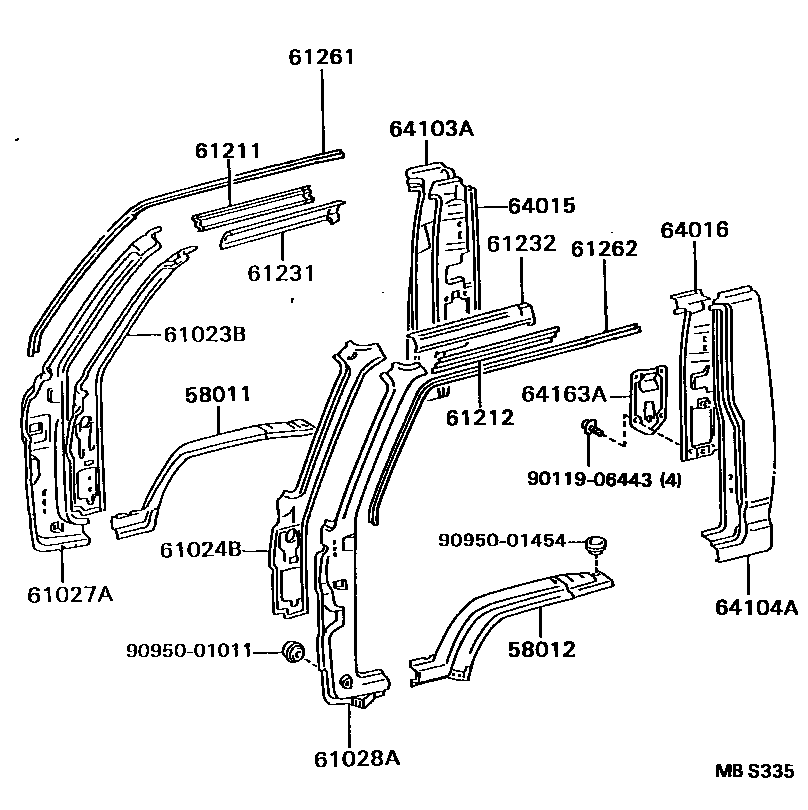

SIDE MEMBER

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iBU75,85198708-198808

sub58011-37010

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iBU75,85198708-198808

sub58012-37010

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95401iBU75,85198708-198808

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95401iBU75,85198708-198808

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95401iBU75,85198708-198808

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95401iBU75,85198708-198808

sub61028-37040

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iBU75,85198708-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iBU75,85198708-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-95406iBU75,85198708-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-95405iBU75,85198708-198808

sub61232-95406

61261CHANNEL, ROOF DRIP, RH

main61261-95407iBU75,85198708-198808

61262CHANNEL, ROOF DRIP, LH

main61262-95407iBU75,85198708-198808

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95403iBU75,85198708-198808

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95403iBU75,85198708-198808

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-95404iBU75,85198708-198808

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-95404iBU75,85198708-198808

main64104-95412iBU75,85198708-198808

sub61268-95400

64163ACOVER, BACK CORNER, INNER

main64163-95410-06×2iBU75,85198708-198808

BROWN,TRIM4#

sub64163-95901

9011906443

main90119-06443

9095001011

main90950-01011

9095001454

main90950-01454

20 parts on this diagram · 1 diagram in section
