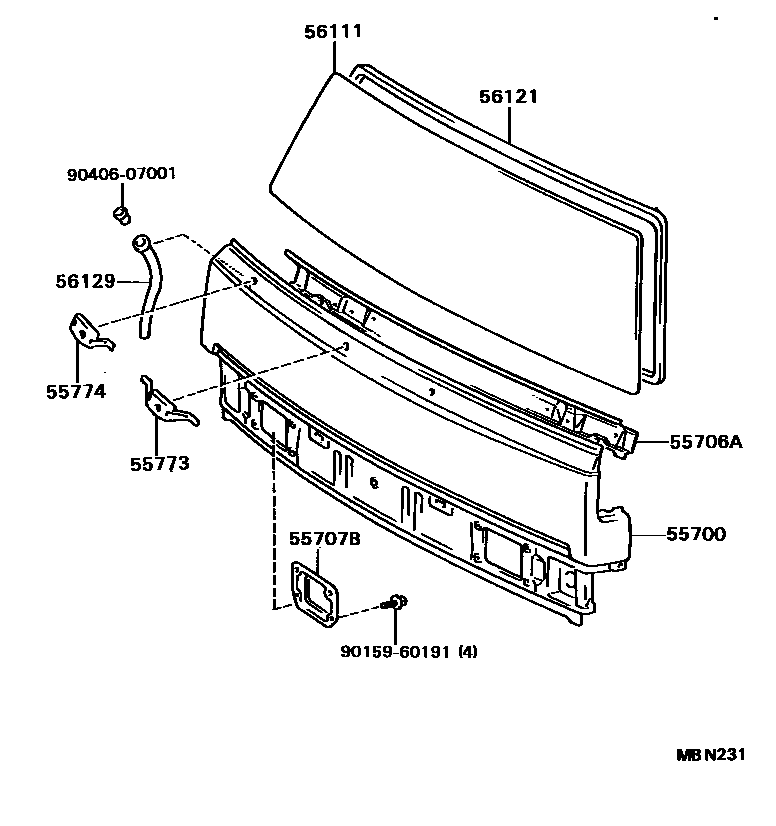

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95448iBU75,85198708-198808

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95408iBU75,85198708-198808

55707BSHUTTER SUB-ASSY, FRONT AIR

main55723-95404iBU75,85198708-198808

55773RETAINER, WIPER SHAFT, CENTER

main55773-95407iBU75,85198708-198808

RH

main55773-95408iBU75,85198708-198808

LH

55774RETAINER, WIPER SHAFT SIDE

main55774-95407iBU75,85198708-198808

56111GLASS, WINDSHIELD

main56111-95418iBU75,85198708-198808

*ZT,T=5.0

sub56111-95419

main56111-95419iBU75,85198708-198808

*LAM,T=5.7

sub56111-95420

56121WEATHERSTRIP, WINDSHIELD

main56121-95411iBU75,85198708-198808

56129HOSE, WINDSHIELD DRAIN

main56129-95400iBU75,85198708-198808

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
