FRONT VENTILATOR

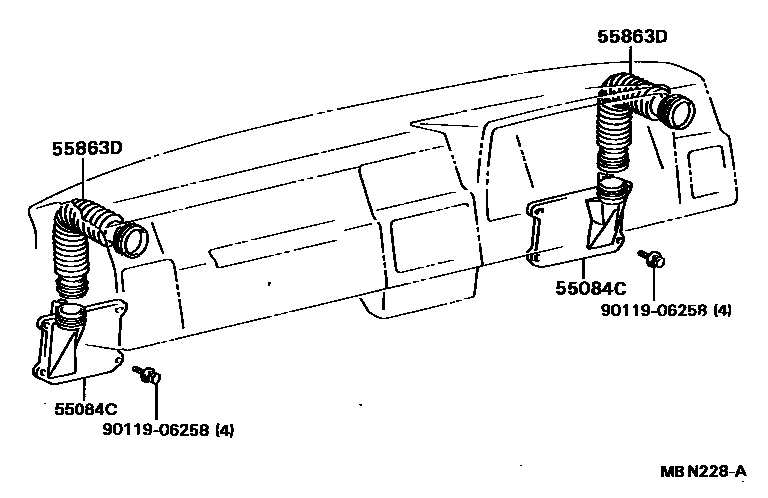

Parts diagram

55084CDUCT SUB-ASSY, HEATER TO REGISTER, NO.1

main55084-95400i198708-198808

RH

main55085-95400i198708-198808

LH

55863DBOOT, SIDE VENTILATOR DUCT

main55863-95405i198708-198808

RH

main55863-95406i198708-198808

LH

9011906258

main90119-06258

3 parts on this diagram · 1 diagram in section
