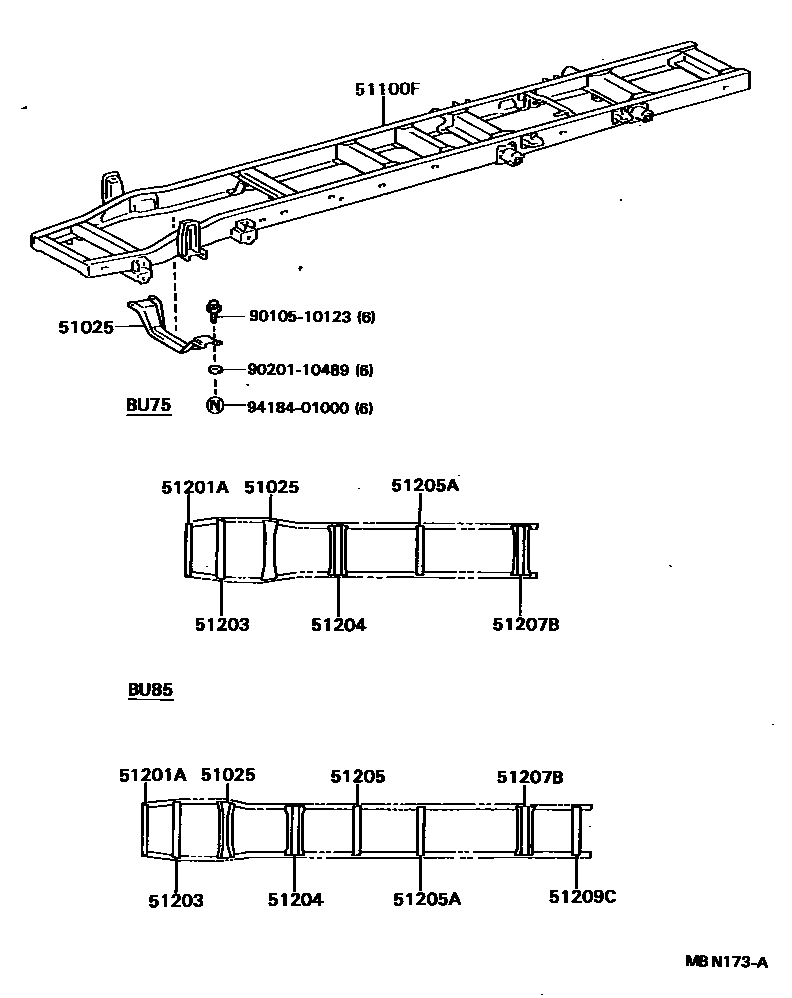

FRAME

0001 1 0002 1

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-36030iBU75,85198708-198808

51100FFRAME SUB-ASSY

main51002-3B460iBU75198708-198808

sub51002-3B461

sub17573-58061

sub90119-08086

main51002-3B530iBU85198708-198808

sub51002-3B531

sub17573-58061

sub90119-08086

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-36120iBU75,85198708-198808

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-36120iBU75,85198708-198808

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36250iBU75198708-198808

sub51203-36251

main51203-36270iBU85198708-198808

sub51203-36271

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-36120iBU85198708-198808

51205ABRACKET SUB-ASSY, DIFFERENTIAL SUPPORT

main51205-36130iBU75198708-198808

main51251-36110iBU85198708-198808

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-36010iBU85198708-198808

main51207-36060iBU75198708-198808

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-36200iBU85198708-198808

9010510123

main90105-10123

9020110489

main90201-10489

9418401000

main94184-01000

12 parts on this diagram · 2 diagrams in section
