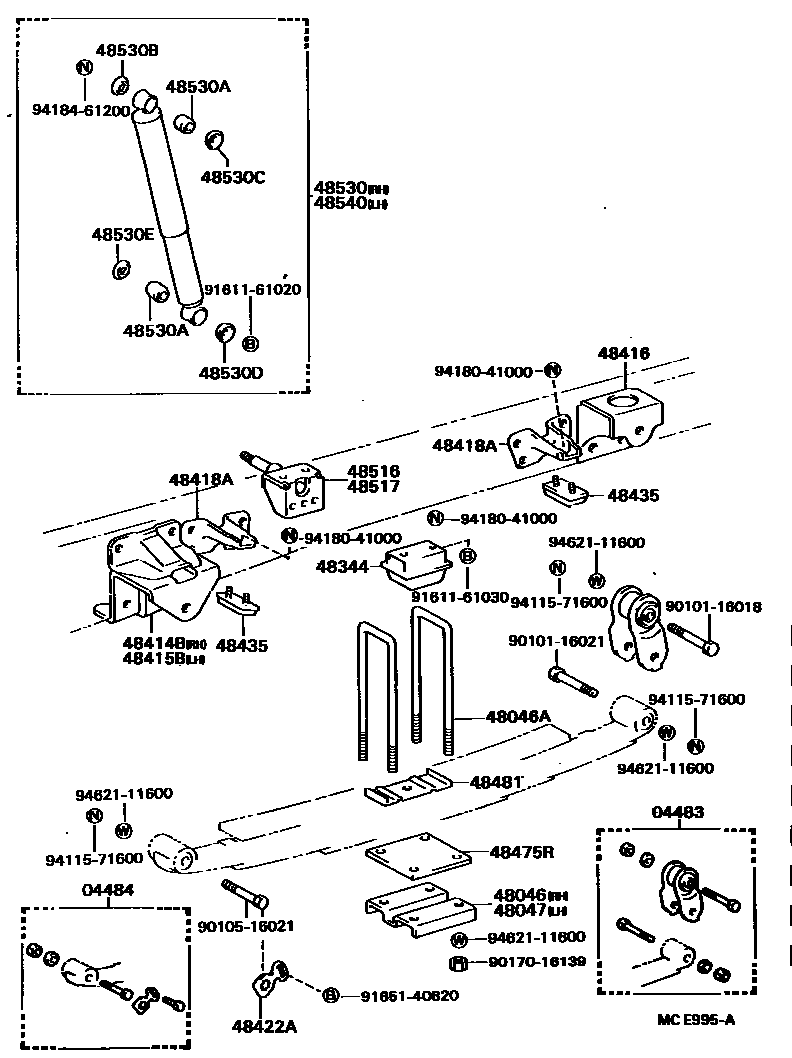

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

04483SHACKLE KIT, REAR SPRING

main04483-36070iBU75,85198708-198808

04484PIN KIT, REAR SPRING

main04484-36050iBU75,85198708-198808

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48473-36100iBU75198708-198808

main48473-36110iBU85198708-198808

48046ABOLT, U(FOR REAR SPRING)

main90117-16018iBU85198708-198808

L=300,L=300

main90117-16025iBU85198708-198808

L=305,L=305

main90117-16142iBU75198708-198808

L=255

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48473-36100iBU75198708-198808

main48473-36110iBU85198708-198808

48344STOPPER, BUMPER, REAR

main48344-36200iBU85198708-198808

main48344-36220iBU75198708-198808

48414BBRACKET, SPRING, NO.3 RH

main48414-36210iBU75,85198708-198808

48415BBRACKET, SPRING, NO.3 LH

main48414-36210iBU75,85198708-198808

48416BRACKET, SPRING, NO.4

main48416-36190iBU75,85198708-198808

48418ABRACKET, HELPER SPRING, FRONT

main48418-36090iBU75,85198708-198808

48422ASUPPORT, REAR SPRING PIN

main48422-36030iBU75,85198708-198808

sub48422-37010

48435ATTACHMENT, HELPER SPRING BRACKET, NO.1

main48435-36050iBU75,85198708-198808

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU75198708-198808

main48475-36090iBU85198708-198808

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU75198708-198808

main48481-36050iBU85198708-198808

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU85198708-198808

main48505-36050iBU75198708-198808

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU85198708-198808

main48505-36050iBU75198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39735iBU75,85198708-198808

sub48531-39736

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009iBU75,85198708-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03007iBU75,85198708-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU75,85198708-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU75,85198708-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU75,85198708-198808

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39735iBU75,85198708-198808

sub48531-39736

9010116018

main90101-16018

9010116021

main90101-16021

9010516021

main90105-16021

9017016139

main90170-16139

9161161020

main91611-61020

9161161030

main91611-61030

9165140820

main91651-40820

9411571600

main94115-71600

9418041000

main94180-41000

9418461200

main94184-61200

9462111600

main94621-11600

34 parts on this diagram · 2 diagrams in section
