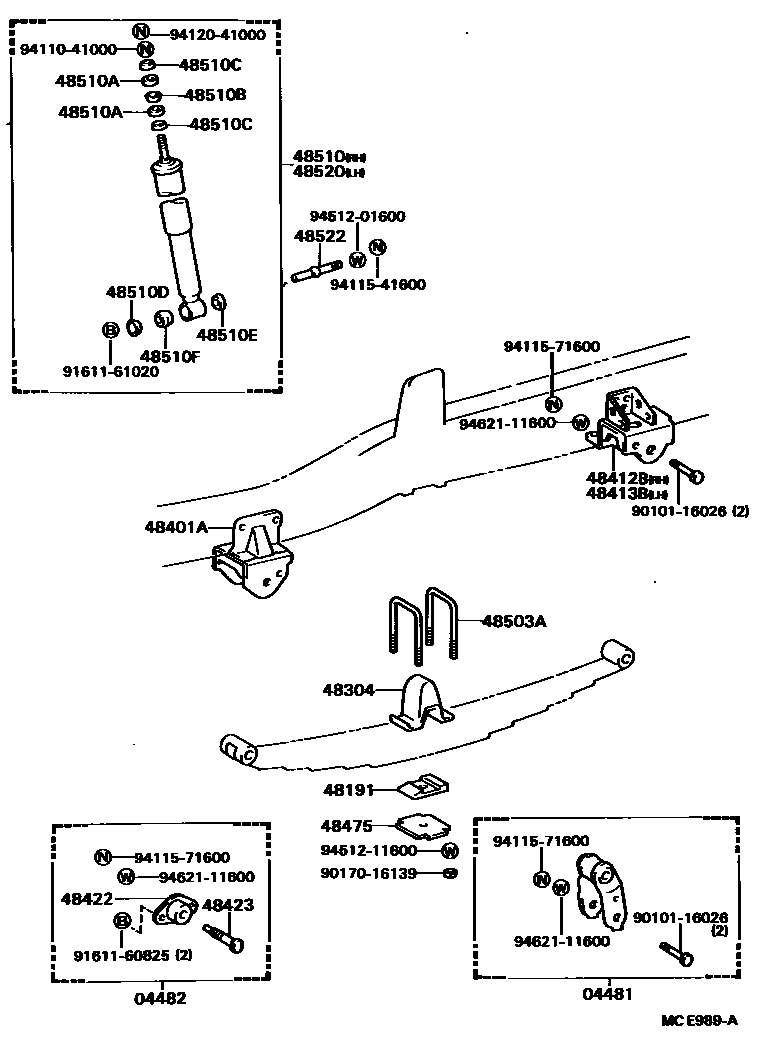

FRONT SPRING & SHOCK ABSORBER
04481SHACKLE KIT, FRONT SPRING
04482PIN KIT, FRONT SPRING
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48401ABRACKET SUB-ASSY, SPRING, NO.1
RH
LH
48412BBRACKET, SPRING, NO.2 RH
48413BBRACKET, SPRING, NO.2 LH
48422SUPPORT, FRONT SPRING PIN
48423PIN, FRONT SPRING BRACKET
48475PLATE, DISTANCE(FOR FRONT)
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
L=130
L=115
L=105
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510FCUSHION, SHOCK ABSORBER
48520ABSORBER ASSY, SHOCK, FRONT LH
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9010116026
main90101-16026
9017016139
main90170-16139
9161160825
main91611-60825
9161161020
main91611-61020
9411041000
main94110-41000
9411541600
main94115-41600
9411571600
main94115-71600
9412041000
main94120-41000
9451201600
main94512-01600
9451211600
main94512-11600
9462111600
main94621-11600
31 parts on this diagram · 3 diagrams in section
