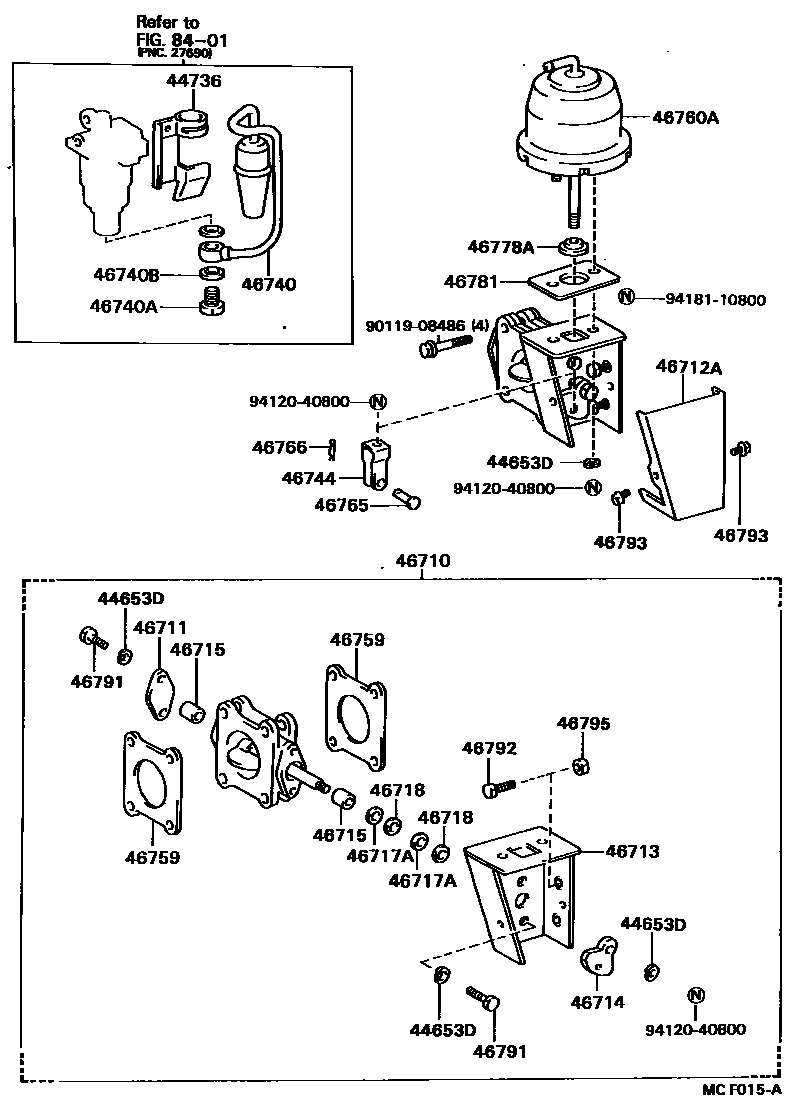

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER
44653DWASHER, EXHAUST VALVE COVER
44736BRACKET, AIR CLEANER
sub44736-36070
46711COVER, EXHAUST VALVE
46712ACOVER, EXHAUST BRAKE BRACKET
46713BRACKET, EXHAUST VALVE
46714LEVER, EXHAUST VALVE
46715BUSH, EXHAUST VALVE, NO.1
L=16.0,L=16
L=20.5,L=20.5
46717ARING, EXHAUST VALVE SEAL, NO.1
46718RING, EXHAUST VALVE SEAL, NO.2
46740CLEANER ASSY, EXHAUST RETARDER
46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)
46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)
46744CLEVIS, EXHAUST BRAKE ROD CLEVIS
46759GASKET, EXHAUST RETARDER
sub46759-36030
46760ACHAMBER ASSY, EXHAUST BRAKE
46765PIN, VACUUM CYLINDER CLEVIS
46766PIN, VACUUM CYLINDER CLEVIS SNAP
46778ABEARING, EXHAUST BRAKE CHAMBER ROD
46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
sub46781-28010
46791BOLT, EXHAUST VALVE COVER
46792BOLT, EXHAUST VALVE STOPPER
46793BOLT, EXHAUST VALVE LINK COVER
46795NUT, EXHAUST VALVE BRACKET
8401
9011908486
main90119-08486
9412040800
main94120-40800
9418110800
main94181-10800
28 parts on this diagram · 1 diagram in section
