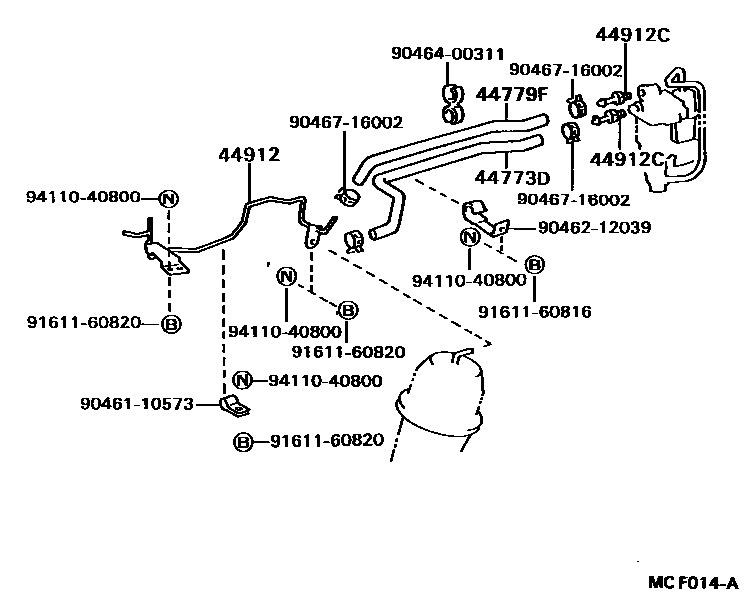

EXHAUST BRAKE TUBE & CLAMP

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36041iBU75,85198708-198808

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36010iBU75,85198708-198808

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36160iBU75,85198708-198808

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU75,85198708-198808

9046110573

main90461-10573

9046212039

main90462-12039

9046400311

main90464-00311

9046716002

main90467-16002

9161160816

main91611-60816

9161160820

main91611-60820

9411040800

main94110-40800

11 parts on this diagram · 1 diagram in section
