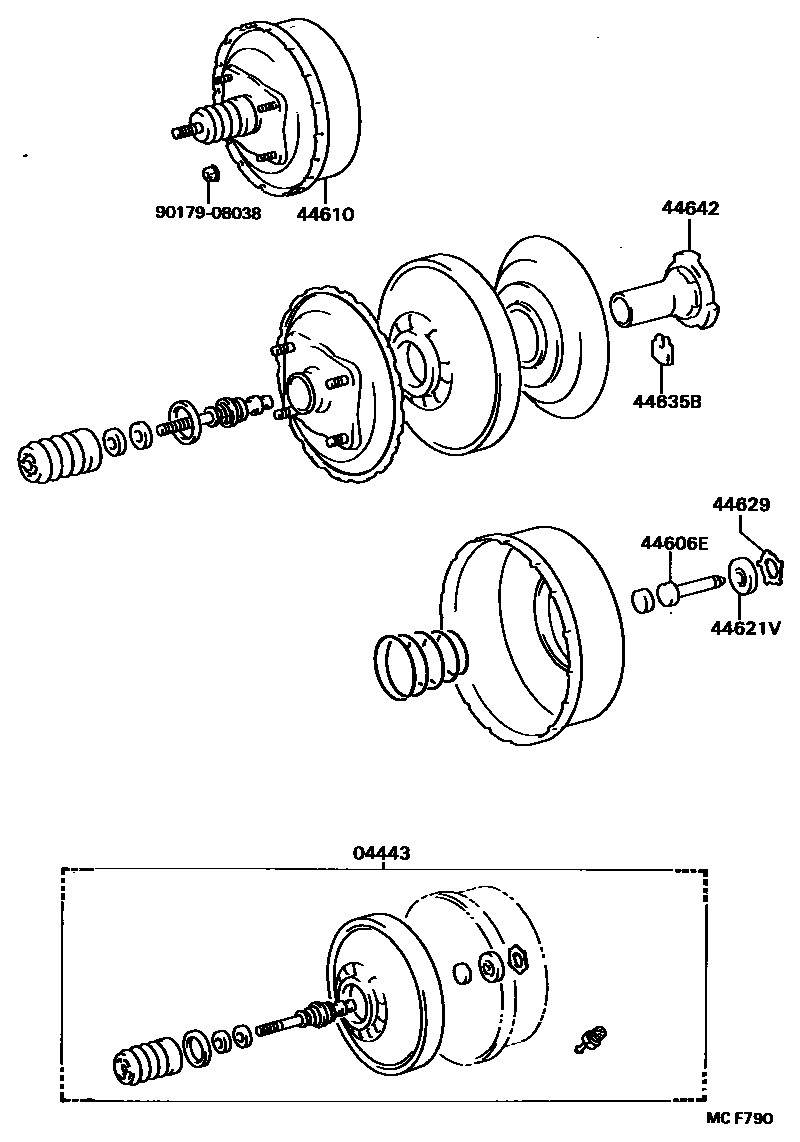

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-36050iBU75198708-198808

main04443-36060iBU75198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iBU75198708-198808

44610BOOSTER ASSY, BRAKE

main44610-36251iBU75198708-198808

main44610-36271iBU75198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36332iBU85198708-198808

W(FR DISC BRAKE RR AUTO ADJUS

main44610-36382iBU85198708-198808

44621VSEAL, BOOSTER BODY

main44621-28120iBU75198708-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iBU75198708-198808

44635BKEY, VALVE STOPPER

main44635-36240iBU75198708-198808

44642PISTON, BRAKE BOOSTER

main44642-36240iBU75198708-198808

main44642-36260iBU75198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
