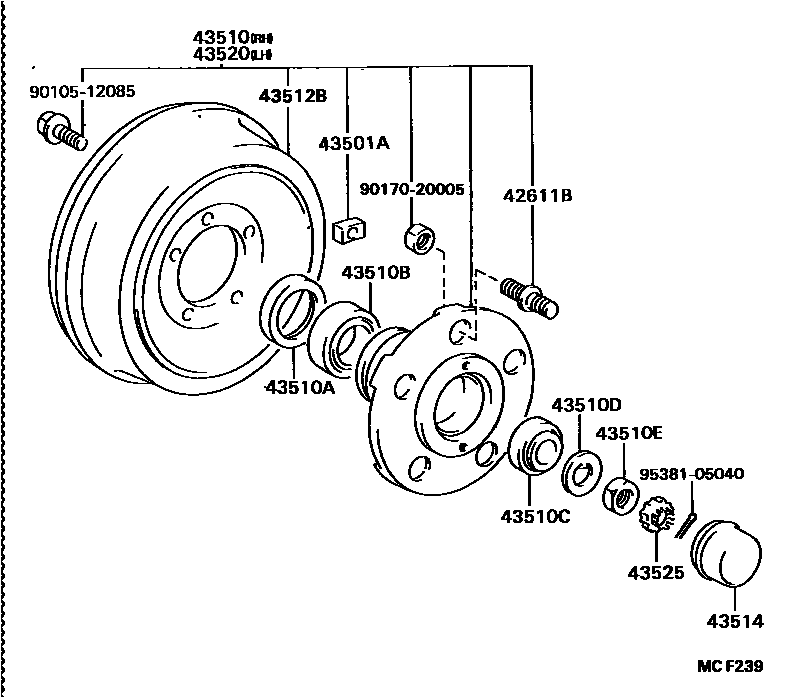

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02045iBU75,85198708-198808

RH

main90942-02046iBU75,85198708-198808

LH

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01122iBU75,85198708-198808

60G

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36131iBU75,85198708-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-68001iBU75,85198708-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU75,85198708-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU75,85198708-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU75,85198708-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU75,85198708-198808

43512DISC, FRONT

main43512-36070iBU75,85198708-198808

43512BDRUM, BRAKE

main43512-36101iBU75,85198708-198808

43514CAP, FRONT HUB GREASE

main43514-36030iBU75,85198708-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36131iBU75,85198708-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU75,85198708-198808

9010512085

main90105-12085

9017020005

main90170-20005

9538105040

main95381-05040

16 parts on this diagram · 2 diagrams in section
