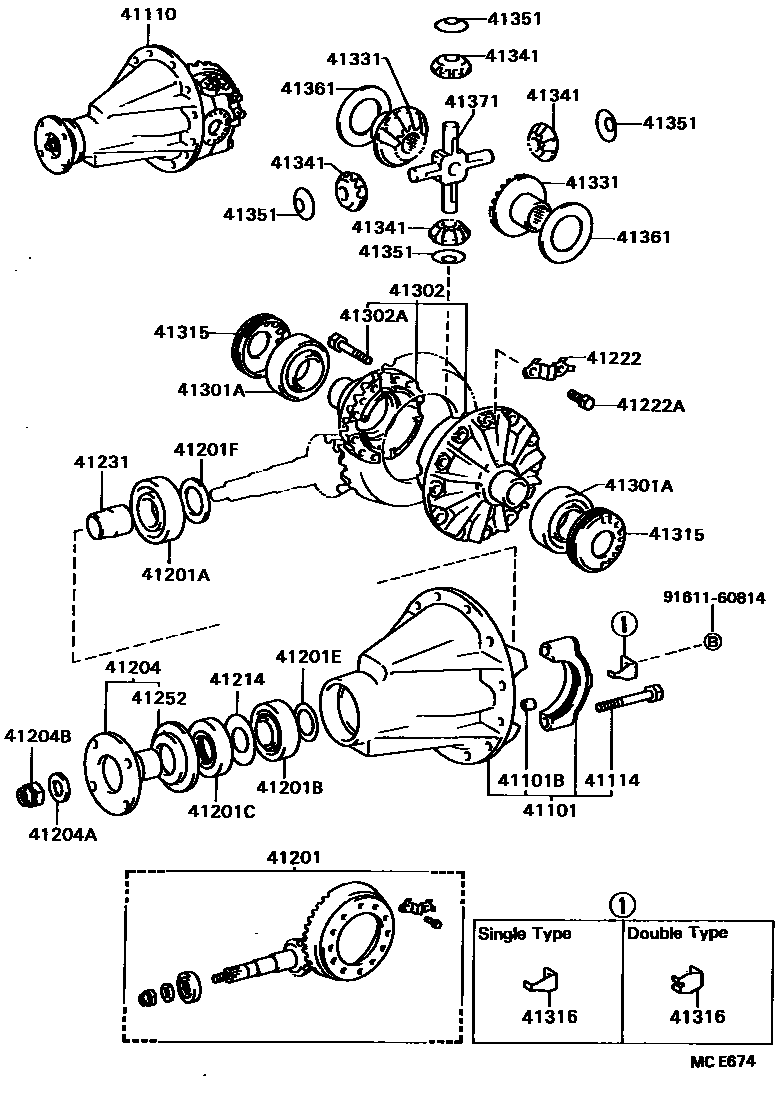

REAR AXLE HOUSING & DIFFERENTIAL
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=39:7=5.571
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=3.10
T=3.20
T=3.30
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=29
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE
SINGLE
DOUBLE
DOUBLE
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.4
T=1.5
T=1.6
T=1.7
9161160814
main91611-60814
29 parts on this diagram · 3 diagrams in section
