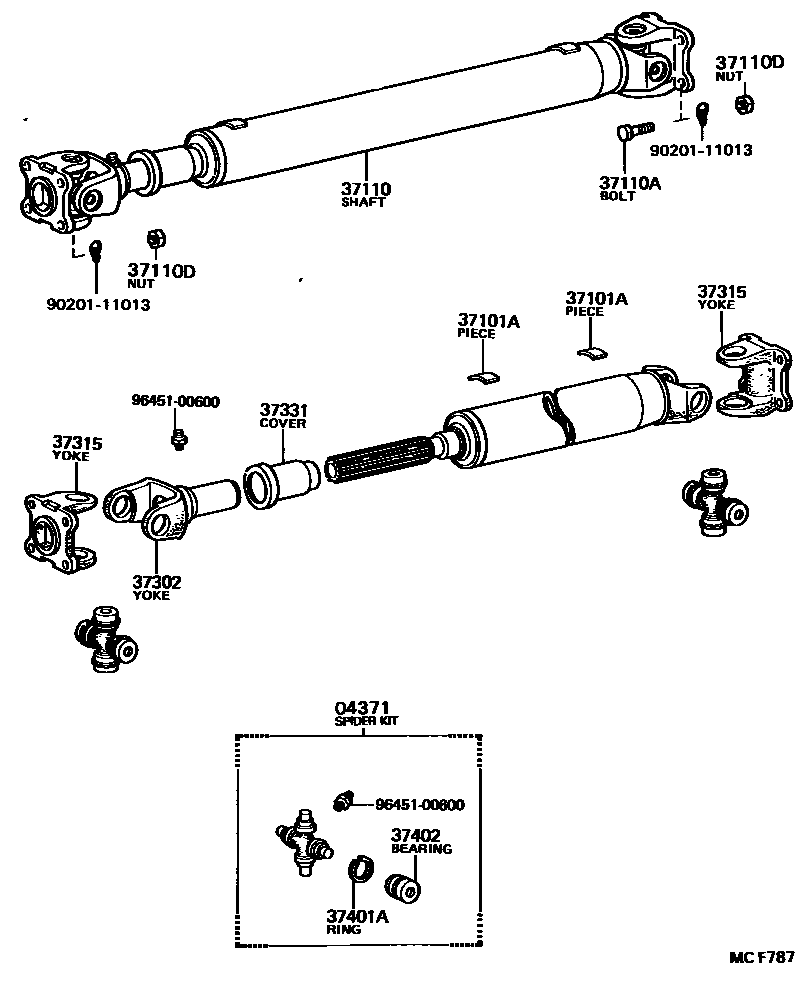

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030iBU75198708-198808

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU75,85198708-198808

10G,L=20.7

main90937-01147iBU75,85198708-198808

2G,T=2.0

main90937-01148iBU75,85198708-198808

4G,T=2.0

main90937-01149iBU75,85198708-198808

6G,L=12.4

main90937-01150iBU75,85198708-198808

8G,L=16.6

main90937-01151iBU75,85198708-198808

12G,L=24.9

main90937-01152iBU75,85198708-198808

14G,L=29.0

37110SHAFT ASSY, PROPELLER

main37110-36530iBU75198708-198808

main37110-36560iBU85198708-198808

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013iBU75,85198708-198808

*11-1.00PX28-16

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005iBU85198708-198808

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36020iBU75,85198708-198808

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020iBU75198708-198808

sub37315-60090

37331COVER, SLIDING SHAFT DUST

main37305-36020iBU75,85198708-198808

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024iBU75198708-198808

T=2.00,NO MARK

main90520-29025iBU75198708-198808

T=2.03,BROWN

main90520-29026iBU75198708-198808

T=2.06,BLUE

main90520-29027iBU75198708-198808

T=2.09,NO MARK

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36080iBU75198708-198808

9020111013

main90201-11013

9645100600

main96451-00600

12 parts on this diagram · 2 diagrams in section
