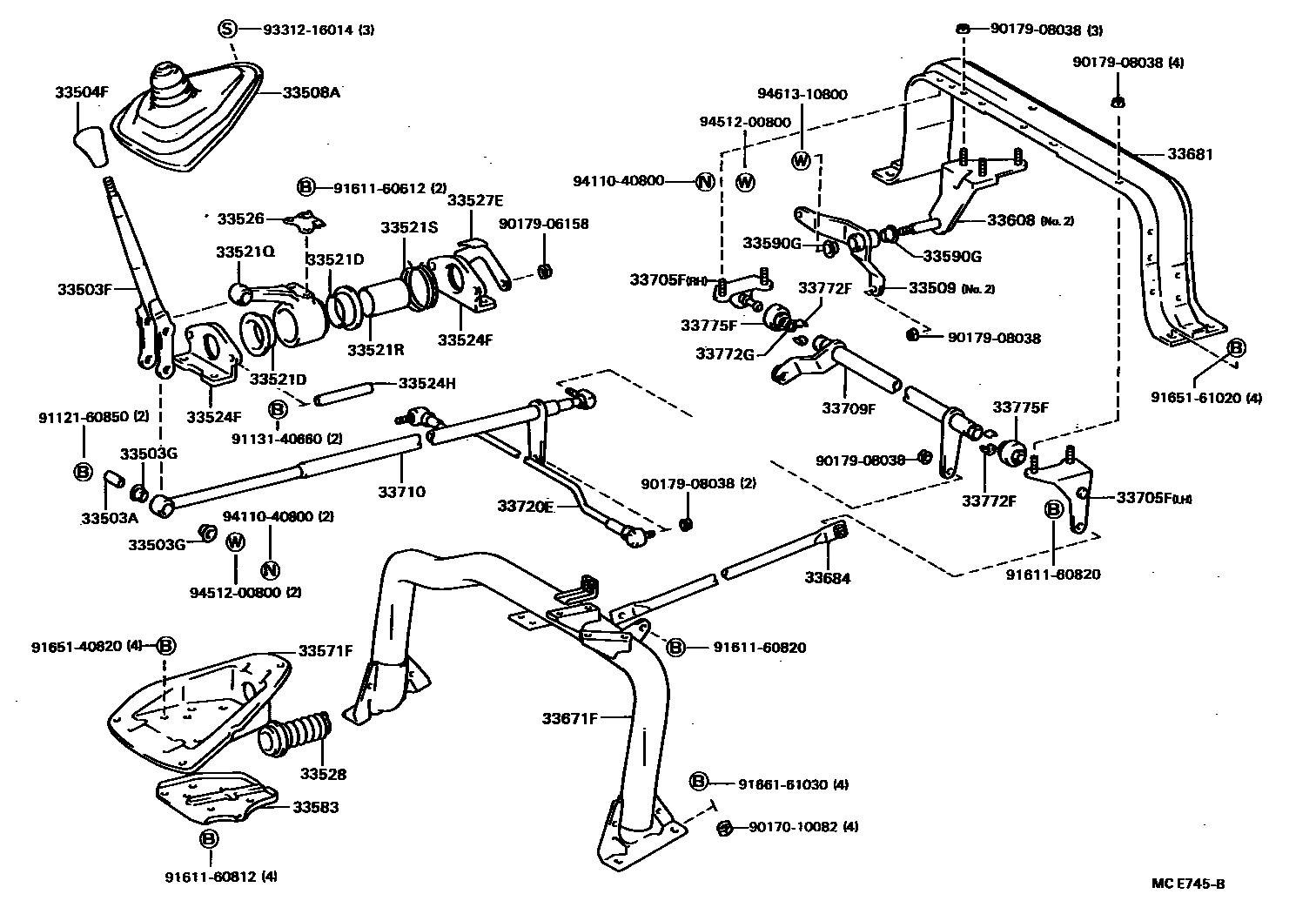

SHIFT LEVER & RETAINER
33503ACOLLAR(FOR SHIFT LEVER)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503GBUSH(FOR SHIFT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
33508ABOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)
33509CRANK SUB-ASSY, SELECTING BELL, NO.1
33521DBUSH (FOR SHIFT LEVER HOUSING)
33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521RCOLLAR (FOR SHIFT LEVER HOUSING)
33521SSPRING (FOR SHIFT LEVER HOUSING)
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33524HCOLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)
33526PLATE, SHIFT LEVER SUPPORT, NO.1
33527EPLATE, SHIFT LEVER SUPPORT, NO.2
33528COVER, CONTROL SHAFT
33571FBRACKET, CONTROL SHAFT, LOWER NO.2
33583BRACKET, CONTROL SHAFT, LOWER NO.2
33590GBUSH (FOR SELECTING BELL CRANK)
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33671FSUPPORT, CONTROL ROD, NO.1
33681MEMBER, CONTROL ROD, REAR
33684ROD, CONTROL MEMBER BRACE
33705FSUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
RH
LH
33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)
33710ROD ASSY, GEAR SHIFTING, NO.1
33720EROD ASSY, GEAR SELECTING
33772FBUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772GRING, SNAP (FOR CROSS SAFT SUPPORT BUSH)
33775FCOVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
CROSS SHAFT NO.2,LH
CROSS SHAFT NO.1
CROSS SHAFT NO.2,RH
9017010082
main90170-10082
9017906158
main90179-06158
9017908038
main90179-08038
9112160850
main91121-60850
9113140660
main91131-40660
9161160612
main91611-60612
9161160812
main91611-60812
9161160820
main91611-60820
9165140820
main91651-40820
9165161020
main91651-61020
9166161030
main91661-61030
9331216014
main93312-16014
9411040800
main94110-40800
9451200800
main94512-00800
9461310800
main94613-10800
44 parts on this diagram · 2 diagrams in section
