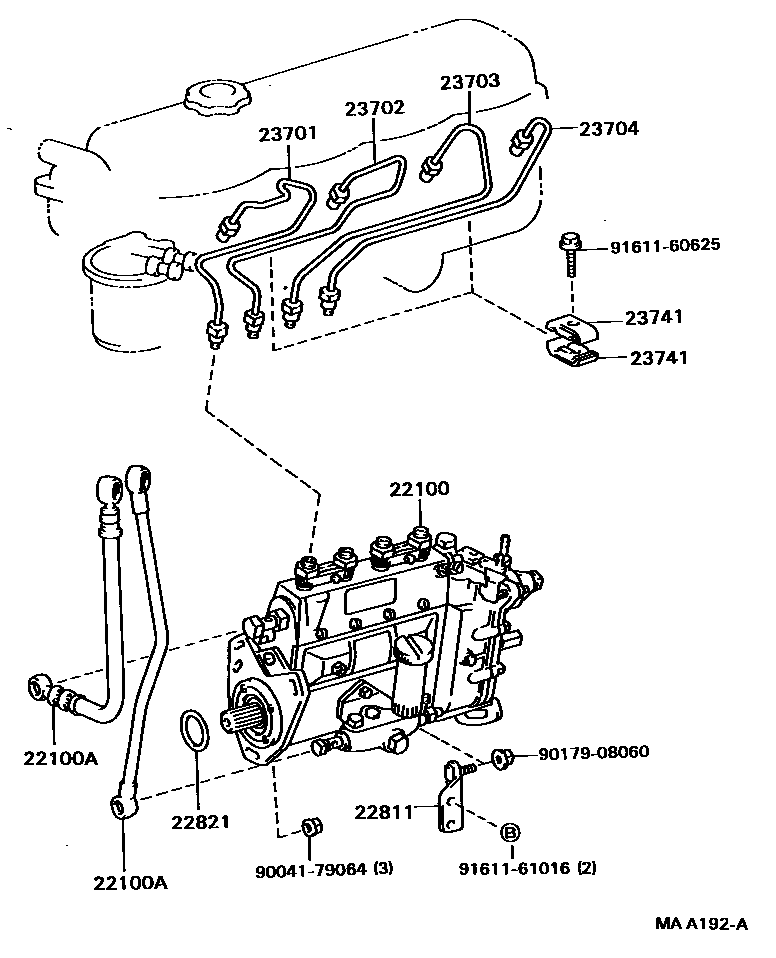

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56211iB..BU75198708-198808

main22100-58292i13B..BU85198708-198808

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060iB,13B..BU75,85198708-198808

PIPE L=300

main23802-56040iB,13B..BU75,85198708-198808

HOSE L=210

22811STAY, INJECTION PUMP, NO.1

main22811-56011iB..BU75198708-198808

main22811-56040i13B..BU85198708-198808

22821GASKET, INJECTION PUMP

main90301-77001iB..BU75198708-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030iB..BU75198708-198808

main23701-56060i13B..BU85198708-198808

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030iB..BU75198708-198808

main23702-56060i13B..BU85198708-198808

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020iB..BU75198708-198808

main23703-56060i13B..BU85198708-198808

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020iB..BU75198708-198808

main23704-56060i13B..BU85198708-198808

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010×4iB,13B..BU75,85198708-198808

9004179064

main90041-79064

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

13 parts on this diagram · 2 diagrams in section
