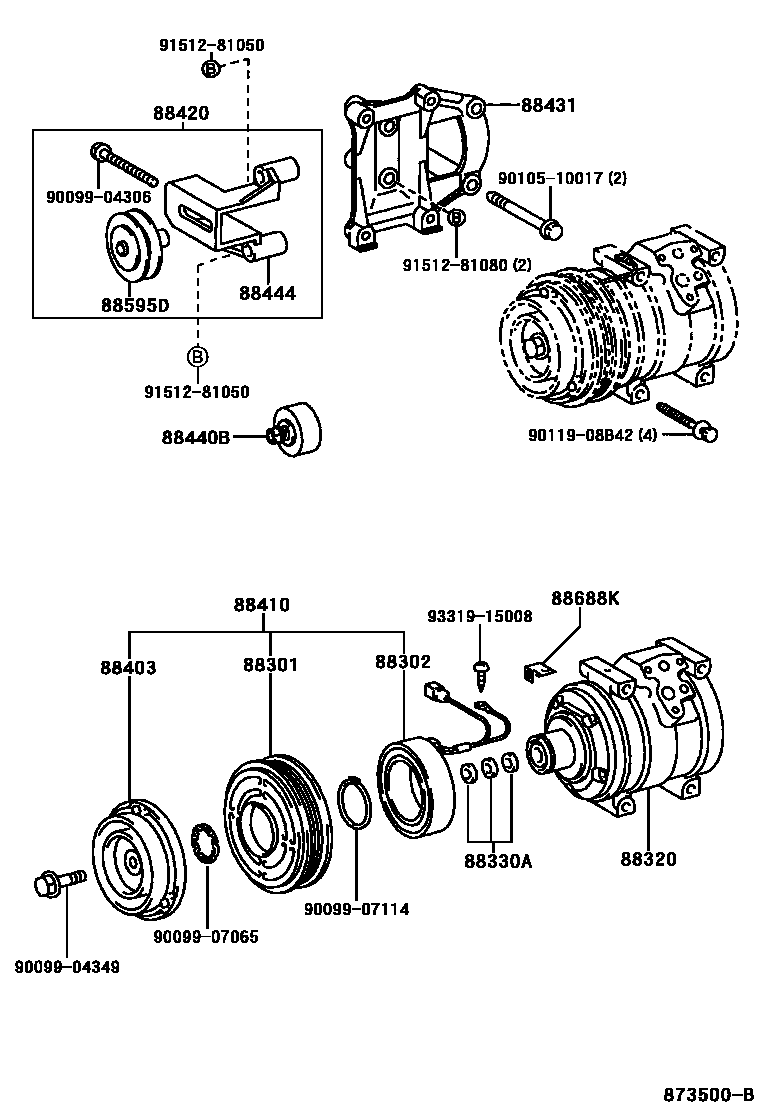

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1REFRIGERATOR CAR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-37010iXZU300,320,330,340199907-200212

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-60090iXZU30#,320,330,34#199907-200212

88320COMPRESSOR ASSY, COOLER

main88320-37070iXZU300,320,330,340199907-200212

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iXZU30#,320,330,34#199907-200212

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iXZU30#,320,330,34#199907-200212

88410CLUTCH ASSY, MAGNET

main88410-37080iXZU30#,320,330,34#199907-200212

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-37100iXZU300,320,330,340..30T,40T199907-200212

main88420-37141iXZU302,307,342200010-200206

sub88420-37142

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-37020iXZU302,307,342200010-200206

REFRIGERATOR CAR

main88345-37090iXZU302,307,342200010-200206

main88431-37080iXZU320;XZU300..20T199907-200212

88440BPULLEY ASSY, IDLE

main88440-37020iXZU302,307,342200010-200206

main88440-37030iXZU320;XZU300..20T199907-200212

88444BRACKET, IDLE PULLEY

main88444-37120iXZU300,320,330,340199907-200212

88595DPULLEY ASSY, IDLE

main88440-35010iXZU300,320,330,340199907-200212

88688KBRACKET, COOLER COMPRESSOR

main88688-2D770iXZU300,320,330,340199907-200212

9009904306

main90099-04306

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510017

main90105-10017

9011908B42

main90119-08B42

9151281050

main91512-81050

9151281080

main91512-81080

9331915008

main93319-15008

21 parts on this diagram · 3 diagrams in section
