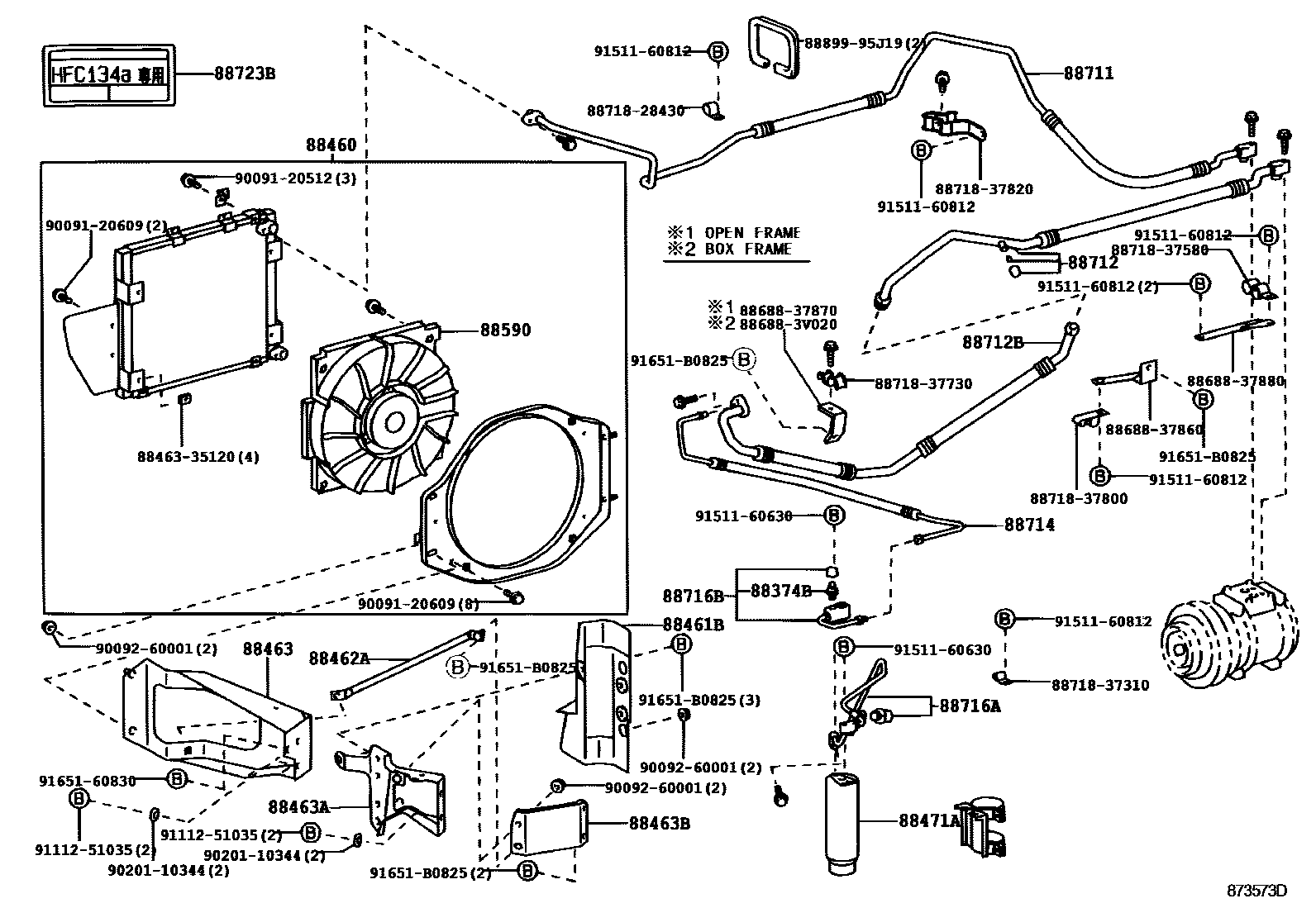

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iXZU302,307,342199907-200212

88460CONDENSER ASSY, COOLER

main88460-37324iXZU302,307,342200010-200212

main88460-37400iXZU300,320,330,340199907-199908

sub88460-37401

main88460-37401iXZU300,320,330,340199908-200107

main88460-37510iXZU302,307,342200105-200204

sub88460-37511

main88460-37511iXZU302,307,342200204-200206

sub88460-37512

88461BCOVER, COOLER CONDENSER

main53715-37180iXZU30#,320,330,34#199907-200212

88462AHOLDER, CONDENSER

main88462-37040iXZU300,320,330,340199907-200212

main88462-37070iXZU302,307,342200010-200206

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37120iXZU300,320,330,340199907-200212

main88463-37140iXZU302,307,342200010-200206

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-37140iXZU300,320,330,340199907-200212

main88463-37150iXZU302,342200010-200206

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-37150iXZU300,320,330,340199907-200212

main88463-37160iXZU302,307,342200010-200206

sub88463-37161

88471ATANK, RECEIVER

main88471-34010iXZU30#,320,330,34#199907-200212

88590BLOWER ASSY, W/SHROUD

main88590-37050iXZU300,320,330,340199907-199908

sub88590-37051

main88590-37051iXZU30#,320,330,34#199908-200212

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-37420iXZU302,307,342200010-200206

main88711-37610iXZU300,320,330,340199907-200212

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-37670iXZU302,307,342200010-200206

sub88712-37671

main88712-3V240iXZU300,320,330,340199907-200212

88712BHOSE, COOLER REFRIGERANT SUCTION

main88712-37660iXZU302,307,342200010-200206

main88712-3V250iXZU300,320,330,340199907-200212

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-37360iXZU302,307,342200010-200206

sub88721-37361

main88721-37570iXZU300,320,330,340199907-200212

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-37750iXZU300,320,330,340199907-200212

main88716-37840iXZU302,307,342200010-200105

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-37790iXZU300,320,330,340199907-200212

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iXZU30#,320,330,34#199907-200212

sub88733-30040

main88723-20040iXZU302,307,342200010-200206

AUSTRALIA SPEC

main88733-27010iXZU302,307,342200203-200206

8846335120BRACKET, COOLER CONDENSER, NO.1

main88463-35120

8868837860BRACKET, COOLER DIAPHRAGM

main88688-37860

8868837870BRACKET, COOLER DIAPHRAGM

main88688-37870

8868837880BRACKET, COOLER DIAPHRAGM

main88688-37880

886883V020BRACKET, COOLER DIAPHRAGM

main88688-3V020

8871828430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-28430

8871837310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37310

8871837580PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37580

8871837730PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37730

8871837800PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37800

8871837820PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37820

8889995J19COVER, EVAPORATOR

main88899-95J19

9009120512

main90091-20512

9009120609

main90091-20609

9009260001

main90092-60001

9020110344

main90201-10344

9111251035

main91112-51035

9151160630

main91511-60630

9151160812

main91511-60812

9165160830

main91651-60830

91651B0825

main91651-B0825

37 parts on this diagram · 4 diagrams in section
