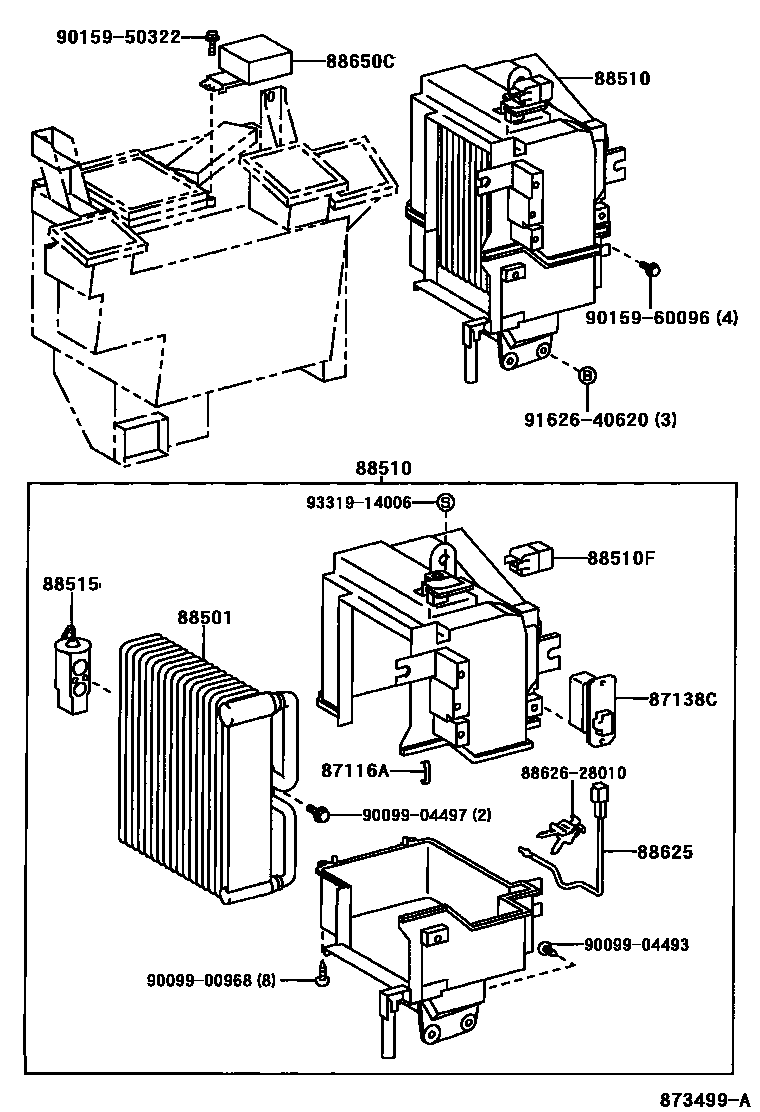

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1LEVER TYPE MANUAL AIR CONDITI0003 1AUTO A/C,PUSH TYPE MANUAL A/C0004 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iXZU300,320,330,340199907-200212

87138CRESISTOR, BLOWER

main87138-37090iXZU300,320,330,340199907-200212

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37070iXZU300,320,330,340199907-200212

88510UNIT ASSY, COOLER

main88510-37120iXZU302,307,342200010-200206

main88510-37130iXZU300,320,330,340199907-200212

main88510-37150iXZU302,307,342200010-200206

W(PUSH TYPE MANUAL AIR CONDITIONER) OR W(AUTO AIR CONDITIONER)

88510FHOLDER, FUSE

main82630-95J03iXZU300,320,330,340199907-200212

88515VALVE, COOLER EXPANSION

main88515-16060iXZU300,320,330,340199907-200212

sub88515-28160

88625THERMISTOR, COOLER, NO.1

main88625-20460iXZU300,320,330,340199907-200212

sub88625-32150

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-37150iXZU302,307,342200010-200206

W(AUTO AIR CONDITIONER)

main88650-37170iXZU302,307,342200010-200206

W(PUSH TYPE MANUAL AIR CONDITIONER)

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37120iXZU300,320,330,340199907-200212

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

9009900968

main90099-00968

9009904493

main90099-04493

9009904497

main90099-04497

9331914006

main93319-14006

14 parts on this diagram · 4 diagrams in section
