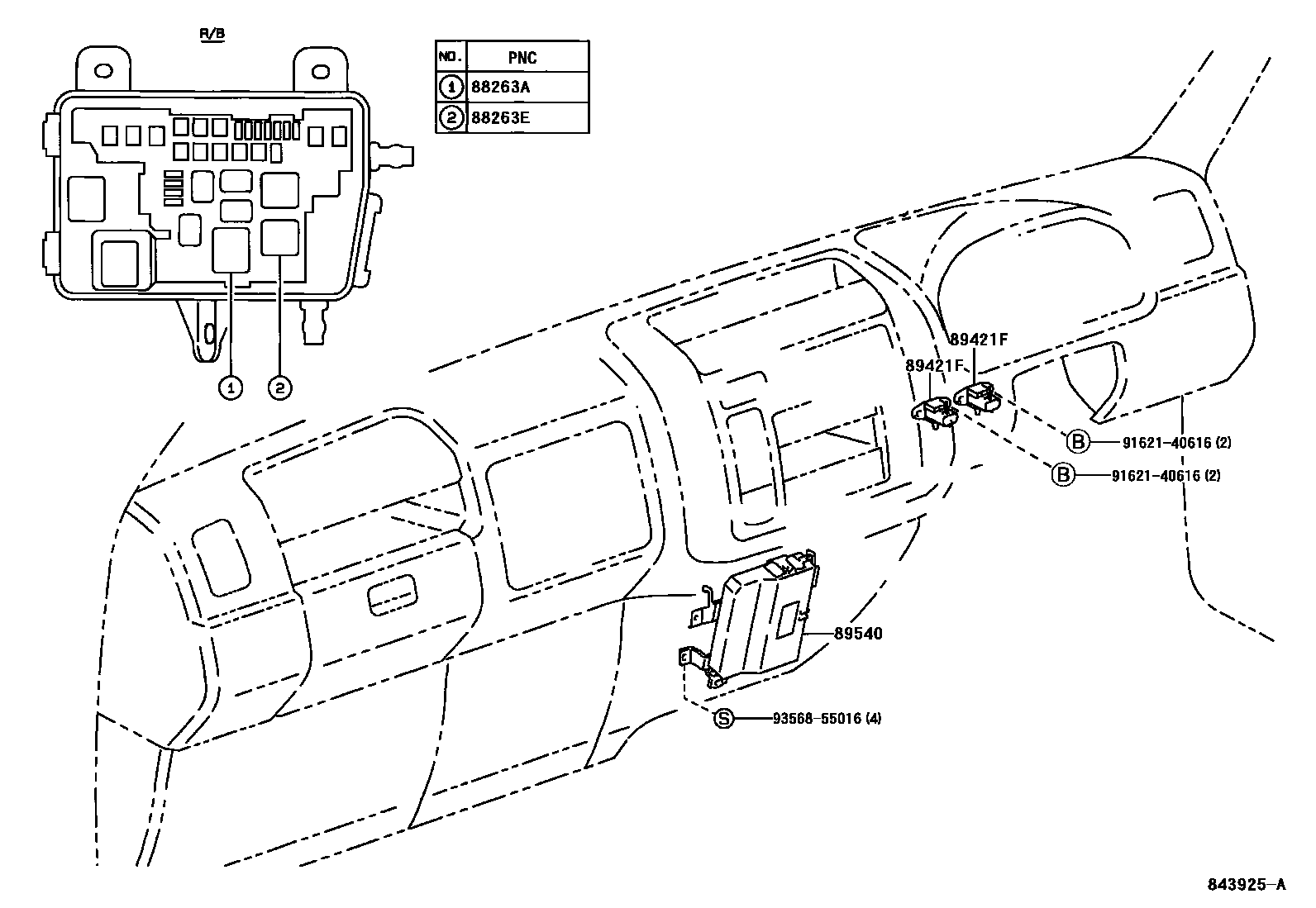

ABS & VSC

0001 1 0002 1FRONT SPEED SENSOR 0003 1REAR SPEED SENSOR

88263ARELAY, SKID CONTROL

main88263-36040iXZU302,307,342200010-200206

88263ERELAY, SKID CONTROL NO.2

main88263-36050iXZU302,307,342200010-200206

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010iXZU302,307,342200010-200206

sub89421-37030

89540COMPUTER ASSY, SKID CONTROL

main89540-37030iXZU302,307200010-200111

sub89540-37031

main89540-37031iXZU302,307200111-200206

main89540-37060iXZU342200010-200111

sub89540-37061

main89540-37061iXZU342200111-200206

9162140616

main91621-40616

9356855016

main93568-55016

6 parts on this diagram · 3 diagrams in section
